SHIMANO GRX crank FC-RX810 | 2x 11-speed
The Gravel bikes are becoming increasingly popular among cyclists. The advantages are apparent. They have a more comfortable geometry than racing bikes, are also excellent off the paved roads and are suitable for a longer journey. However, the conventional racing bike components reach their limits with these wheels. Therefore, Shimano has developed its own switching groups especially for this genus.
The FC-RX810 crank comes with a typical gravel gradation. With the big 48 teeth blade you can do a lot of speed on the level, but with the small 31er you can easily climb longer climbs. The outwardly shifted chain line has created space for wider tires. Nevertheless, the Q-factor with 151 mm has remained in the green range. The typically outstanding Shimano finish and aerodynamic shaped elements on the outer chainring make the crankset a long-lasting and reliable companion on your tours.
Technical specifications:
intended use : Gravel, Cyclocross
Material crank arms: aluminum
Material Spider: aluminum
Material crankshaft: steel
Diameter crankshaft: 24 mm
Crank lengths: 170.0 mm, 172.5 mm or 175.0 mm
bolt circle diameter diameter: 110/80 mm
Spider: 4-arm
Chain blade pitch: 48/31 teeth
Chainring bolts: aluminum
chain line : 46.9 mm
Q-factor: 151 mm
Compatibility bottom bracket: BSA, ITA, BB30, BB92 and others (optional, not included)
Compatibility chains: 11-speed
Rider weight: n / a
Finish: matt
Color: Black
Weight according to manufacturer: n / a

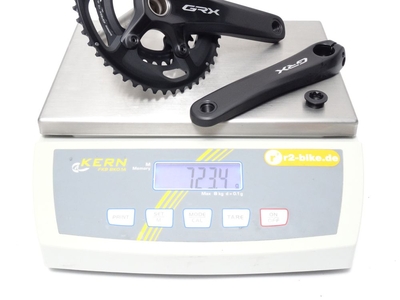

Weight weighed by yourself: 723g (170 mm)
Delivery: 1x SHIMANO GRX crank FC-RX810 | 2x 11-speed including chainrings, without bottom bracket
