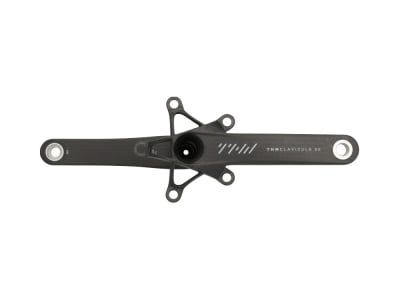

THM CARBONES Crank Clavicula SE Road BCD 110 2-speed 160 mm mat

Description

THM CARBONES crank Clavicula SE Road LK 110 2x

The Clavicula SE is a full carbon crank with an integrated carbon axle. During development, particular emphasis was placed on an optimum structural design. The spider for the chainring mount should be emphasized here. It was defined exclusively after analyzing the load paths, both geometrically and structurally. This resulted in extreme lateral stiffness for optimum shifting behavior and outstanding stiffness in the circumferential direction for loss-free power transmission. As a side effect, so to speak, this optimization has resulted in an above-average stiff and light overall crank system.
THM-Carbones is particularly proud of a patent for the connection between the left-hand crank and the axle. This is the first time that a carbon-carbon material combination has been used, which has already been extensively and successfully tested in recent years. The decisive factor here is that it has been possible to minimize the relative movements between the teeth thanks to the identical fibre structure of the external and internal teeth. As a result, there is practically no wear and no possibility of noise development at this point. The Clavicula SE significantly raises the bar set by THM-Carbones. It can be regarded as a new reference in crank construction.

Technical data:

Area of application: Road bike, triathlon, gravel
Material crank arms: Carbon
Spider material: Carbon
Crankshaft material: Carbon
Crankshaft diameter: 30 mm
Crank lengths: 160 mm / 162.5 mm / 165 mm / 167.5 mm / 170 mm / 172.5 mm / 175 mm
Bolt circle diameter: 110 mm
Spider: 5-arm
Chainring gradation: 1-speed or 2-speed
Chainring bolts: -
Chainline: 45 mm
Q-factor: 151 mm
Inside width: 121 mm
Bottom bracket compatibility: BSA30, BB30, Pressfit30, BBRight, BB386 (optional, not included) etc.
Rider weight: max. 120 kg
Finish: 3K carbon matt or glossy
Color: black

Weight according to manufacturer: 299g (crank without bottom bracket/chainrings)
Weight when weighed: 303g

Scope of delivery: 1x crank without bottom bracket!

Assembly: Please use the manufacturer's instructions for correct assembly.

MPN:

10503602
