SRAM Quarq Power Meter DZero XX1 Eagle DUB AXS Spider
The specialists for power measurement systems from QUARQ have made their DZero and DFour power meters fit for the universal SRAM DUB crank standard. Their lightweight aluminum crankshafts with a diameter of 28.99 millimeters are compatible with the corresponding DUB bottom bracket for all common road bike bottom bracket standards. The latest generation of Quarq power meters can therefore be easily swapped between several bikes.
But it's not just the crank system that has changed, the Quarq Spider has also been equipped with new features. The latest generation is compatible with the SRAM AXS app, which allows firmware updates and other settings to be made. The new MagicZero function ensures optimum calibration of the power meter at all times and eliminates the need for manual calibration. OmniCal and 10K Active Temperature Compensation ensure consistent measured values at all times, even with chainring changes and changing temperatures.
The XX1 Eagle DUB 1-speed power meter with 104 millimeter bolt circle is ideally suited for SRAM 1x12 X-Sync 2 chainrings. These keep the chain reliably on the chainring even without a chain guide. To ensure an optimum chainline in combination with 12x148 millimetre BOOST rear hubs, the spider is also available in a BOOST version.
NOTE: The spider is only suitable for SRAM DUB Powermeter cranks with 8-bolt spider mount! Only the Spider is supplied WITHOUT the crank shown!
Features:
- MagicZero - automatic check and recalibration of the power meter
- AXS App - for firmware updates and settings
- 10K Active Temperature Compensation - automatic temperature compensation with 10000 programmed data adjustment points
- wireless data transmission via Bluetooth Low Energytransmission via Bluetooth Low Energy or ANT+
- OmniCal - chainring changes do not require recalibration and have no effect on the measurement accuracy
- cadence measurement via acceleration sensors (no additional magnet required!))
- waterproof construction according to IPX7 standard
- LED power indicator always informs about battery level
- 200 hours operating time (tool-free battery change according to CR2032 standard)
- Power Balance - calculates the power distribution between left and right leg
- +/- 1.5% measuring accuracy
technical data:
Material: aluminum
Compatibility crank arms: SRAM DUB Powermeter cranks with 8-bolt mount
chainline: Standard (49 mm) or BOOST (52 mm)
Bolt circle: 104 mm, 4-arm
Chainring compatibility: MTB 1-speed
Chainrings: without
Color: black
Weight according to manufacturer: n/aA.
Weight self-weighed: 114g

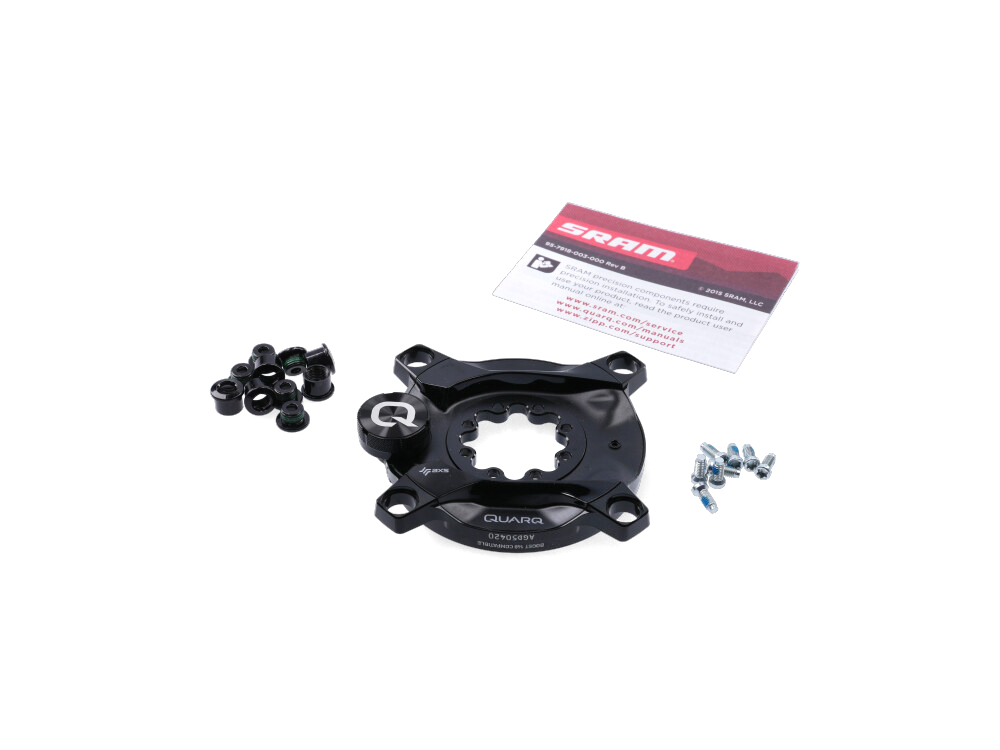

Scope of delivery: 1x SRAM Quarq Power Meter DZero XX1 Eagle DUB AXS Spider
Please note the information on battery regulations
Deutsch
English

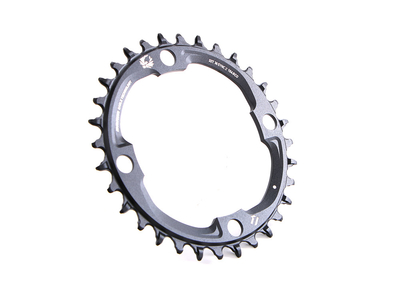

SRAM X-SYNC 2 XX1 | X01 | GX Eagle chain ring 12-speed LK 104 blackavailable from stock
