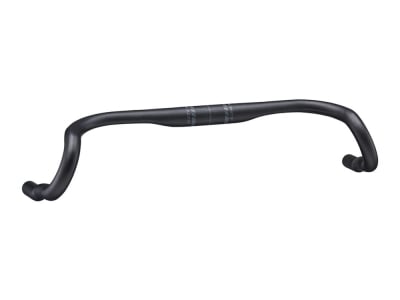

RITCHEY handlebars Comp VentureMax V2
Long before the terms "gravel" and "bikepacking" were established, Tom Ritchey was already riding off-road and over long distances and developing suitable products for precisely these adventures. His direct experience flows into every Ritchey product. This also applies to the popular VentureMax handlebars.
With its short reach, flat drop and deliberately chosen flare, the original VentureMax model already offered a lot of comfort and safety. The V2 generation of the Comp VentureMax builds on this legacy, but has been enhanced with a number of new features. The aerodynamically shaped, ergonomic top bar ensures a more comfortable hand position, while the internal cable routing for a Shimano EW-RS910 junction box further increases the versatility of the handlebars. Multiple grip positions are crucial for comfort and safety on every tour. The Comp VentureMax offers plenty of them. Especially thanks to its generous 24° flare in the lower bar. The reintroduced Bio-Bend in the drop is another practical design element that ensures noticeable comfort on any surface and on any ride, no matter how long.
Technical data:
Area of application: Road bike
Material: Aluminum 6061
Top link shape: ergonomic
Lower link shape: compact
Cable routing: external cable channels
Clip-on compatibility: yes
Handlebar clamp Ø: 31.8 mm
Handlebar width top link (center - center): 400 mm, 420 mm, 440 mm or 460 mm
Handlebar width top link (outer - outer): 503 mm, 523 mm, 543 mm or 563 mm
Diameter lower link: 24 mm
Reach: 75 mm
Drop: 102 mm
Outside bend / Flare: 24°
Flare out: 6°
Inside bend: n.a.
Backsweep: 4.6°
max. rider weight (rider, clothing and luggage): 110 kg
max. permissible torque: stem 5 Nm | components 5 Nm
look/finish: matt
Color: black
Weight according to manufacturer: 320g (420 mm)
Weight self-weighed: 312g (400 mm)
Scope of delivery: 1x handlebar Comp VentureMax V2
