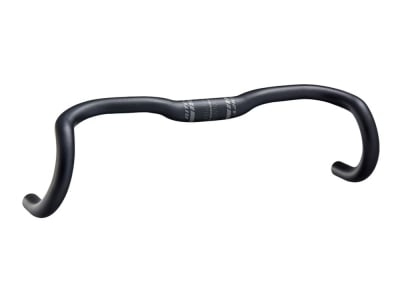

RITCHEY handlebars Comp ErgoMax | 10 mm Rise
The development of Ritchey handlebars enters the next round with the Comp ErgoMax. This model builds on a long tradition of innovative handlebar designs and combines them with the demands of modern gravel and all-road use.
Specially developed to offer more control and comfort on loose terrain, the ErgoMax is perfect for gravel bikes. It positions the hands wider and more stable in the drops. At the same time, its ergonomic design also makes it the ideal choice for endurance road bikes, where maximum long-distance comfort is required.
The upper bar offers a 10-millimeter rise in the clamping area, which ensures a slightly more upright riding position. The oval shape and slight 4° backsweep ensure better pressure distribution on the hands and a more natural grip position. Ergonomics also took center stage in the lower handlebars. The drops have a pleasant 12° flare, which guides the hands safely and comfortably and at the same time provides additional stability when steering or sprinting.
Technical data:
Area of application: Gravel, allroad, road bike
Material: Aluminum 6061
Top link shape: ergonomic
Lower link shape: compact
Cable routing: external cable ducts
Clip-on compatibility: yes
Clamping range: 80 mm
Handlebar clamp Ø: 31.8 mm
Handlebar width top link (center - center): 400 mm, 420 mm, 440 mm or 460 mm
Handlebar width top link (outer - outer): 435 mm, 455 mm, 475 mm or 495 mm
Lower link diameter: 24 mm
Reach: 73 mm
Drop: 128 mm
Flare: 12°
Flare out: 3°
Inside bend: n.a.
Backsweep: 4.6°
max. rider weight (rider, clothing and luggage): n/a
max. permissible torque: stem 5 Nm | components 5 Nm
look/finish: matt
Color: black
Weight according to manufacturer: 320g (420 mm)
Weight self-weighed: 299g (400 mm)
Scope of delivery: 1x RITCHEY handlebar Comp ErgoMax | 10 mm Rise
