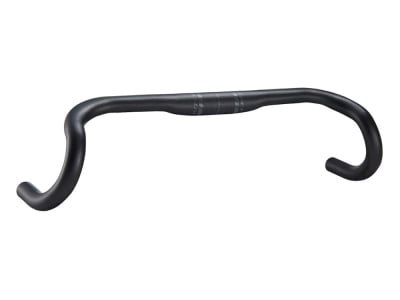

RITCHEY handlebars Comp Butano V2 ICR
Almost fifty years ago, Tom Ritchey and a group of like-minded friends spent countless adventurous hours on the remote trails, crumbling asphalt and rough gravel roads that wind through the mountains around Butano State Park in Northern California. Tom still rides these trails today. It was precisely this landscape and the early, pioneering tours there that served as inspiration for the Butano Gravel handlebars.
Since its introduction a few years ago, this extraordinary handlebar has become a popular product for gravel fans and road cyclists. The wide flare of the drops offers adventurous riders significantly more control and safety than traditional road bike handlebars. At the same time, the low drop and short reach ensure a high level of comfort.
The improved version 2 builds on the proven comfort characteristics and adds new features such as internal cable routing and an ergonomic, aerodynamic top bar area for better hand support. The flare of the drops has also been increased and is now 18°, which provides additional comfort and more control.
Technical data:
Area of application: Gravel, road bike
Material: Aluminum 6061
Top link shape: ergonomic
Lower link shape: compact
Cable routing: fully integrated (routed through the stem) or semi-integrated (openings next to the stem clamp)
Clip-on compatibility: yes
Handlebar clamp Ø: 31.8 mm
Handlebar width top bar (center - center): 380 mm, 400 mm, 420 mm, 440 mm or 460 mm
Handlebar width top link (outer - outer): 446 mm, 466 mm, 486 mm, 506 mm or 526 mm
Lower link diameter: 24 mm
Reach: 73 mm
Drop: 115 mm
Flare: 18°
Internal bend: n.a.
Backsweep: 5°
max. rider weight (rider, clothing and luggage): 110 kg
max. permissible torque: stem 5 Nm | components 5 Nm
look/finish: matt
Color: black
Weight according to manufacturer: 310g (420 mm)
Weight self-weighed: 281g (380 mm)
Scope of delivery: 1x handlebar Comp Butano V2 ICR
