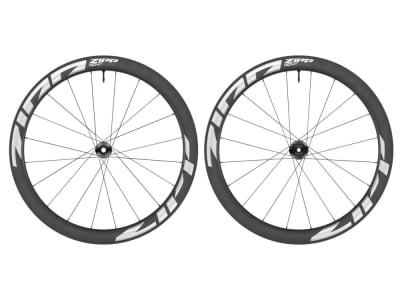

ZIPP 28" 404 S Carbon Wheelset | Tubeless | Center Lock | 12x100 mm | 12x142 mm Thru-Axle | white
The Zipp 404 S wheels have been completely redesigned to offer you maximum speed on the road with an attractive price-performance ratio. Building on the success of the 303 S wheels, the 404 S expands the renowned Zipp S Collection with an aerodynamically highly efficient wheel line for road racing. With a consistent focus on maximum efficiency on the road, the 404 S stands out from the 303 S in several areas: better aerodynamics, optimized hub performance, a modern design, and an even more attractive price.
The 23-millimeter inner rim width allows for the use of tubeless tires ranging from 28 to 39 millimeters in width at low air pressure. This improves rolling resistance as well as control and riding comfort on a wide variety of road surfaces. The 50-millimeter-high rim profiles are based on the proven technologies of the Firecrest design, which offers outstanding aerodynamics combined with high stability in crosswinds.
The wheelset features a 20-hole front wheel and a 24-hole rear wheel and is built with double-crossed Sapim CX-Sprint spokes. At the center of the wheels are the proven Zipp 76 and 176 hubs with classic hub flanges. The ratchet freewheel, with 36 engagement points per wheel rotation, ensures extremely direct power transfer.
Despite its robust construction, the 404 S weighs in at just 1585 grams. For a personalized look, two decal options are available: striking white decals, familiar from the wheelsets of pro teams, or subtle dark gray decals for a timeless, classic look.
Zipp Lifetime Warranty
Zipp offers a lifetime warranty on your Zipp wheel when used properly. The warranty also covers race use and damage caused by rider error, as long as the wheel was used within its intended scope of application. The warranty applies only to the original purchaser, and proof of purchase is required!
NOTES: Due to their hookless profile, the Zipp 404 NSW wheels are only suitable for use with ETRTO-compliant tubeless tires. However, compatible tubeless tires can be used on the wheels without any issues with the included TPU tube (optimized for use with the wheel sensor). You can find an overview of all compatible tires for your Zipp hookless wheel here.
Technical Specifications:
Intended use: Road bike (not approved for gravel use)
Wheel size: 28" (ETRTO: 23-622)
Rim type: Carbon hookless (for tubeless tires only)
Brake type: Disc brakes only
Brake disc mount: Center Lock
Hub material: Aluminum, steel
Rim material: Carbon
Spoke material: Steel
Inner width: 23 mm
Outer width: 29 mm
Rim height: 50 mm
Offset: None
Number of holes (front/rear): 20 / 24
Spokes: Sapim CX-Sprint J-Bend (black)
Spoke pattern: 2-cross
Front wheel axle standard: 12x100 mm thru-axle
Rear wheel axle standard: 12x142 mm thru-axle
Front wheel bearings: 2x stainless steel bearings
Rear wheel bearings: 4x stainless steel bearings
Freewheel compatibility: 11- or 12-speed Shimano Road or 12- or 13-speed SRAM XDR
Freewheel type: 3-pawl, 36 engagement points per wheel rotation
Recommended tire width: 28–39 mm
Maximum tire pressure: 28–29 mm tire width – 5 bar (73 PSI), 30–34 mm tire width – 4.5 bar (65 PSI), 35 - 39 mm tire width - 4 bar (58 PSI)
Tubeless-compatible: Yes
Maximum system weight: 115 kg (rider, bike, clothing, and any luggage)
Valve hole: Presta valve (SV)
Rim color: Matte UD carbon, gray decals
Hub color: black, matte
Weight according to manufacturer: 1545g (wheelset including tubeless tape and tubeless valves)
Weight measured by the author: -
Package contents:
1x Zipp 404 S front wheel | white
1x Zipp 404 S rear wheel | white
2x tubeless rim tape
2x tubeless valves
2x Center Lock rings
