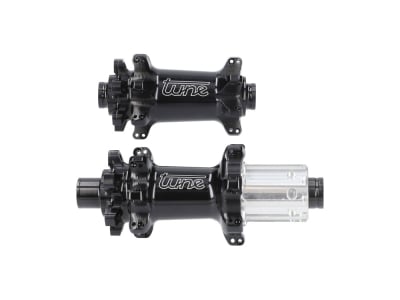

TUNE Hub Set Nano Boost 6B 6-hole | 15x110 mm / 12x148 mm | Standard Bearings | Freewheel Shimano HG 10- / 11- / 12-speed | black
As usual with Tune, the new Nano Boost hubs are CNC-milled from 7075 aluminum. The special feature of the front hub is a new hub flange that does not require a carbon ring. The hubs come with improved seals and you no longer need washers to adjust the axial play. The symmetrical design ensures optimum balance of the front wheel. The POEtry138 freehub mechanism keeps play to a minimum when starting off, so that direct power transmission is possible. The straightpull lacing makes it possible to create an extremely stiff wheel and the tensile forces of the spokes are transmitted in a material-appropriate manner. In addition, the absence of the spoke bend eliminates the weak point of the spokes and guarantees a durable wheelset.
Like all Tune hubs, the Nano Boost is produced, milled and assembled entirely in the Black Forest.
We will be happy to provide you with a quote for a complete custom wheelset with rims and spokes of your choice. Just send us an e-mail to [email protected]!
Technical specifications front wheel hub:
Area of application: MTB, Enduro, Downhill, E-Bike
Material: Aluminum
Axle standard: 15x110 mm thru axle
Number of holes: 28
Brake disc mount: 6-hole disc brake
Bearings: 2 x ball bearings ABEC5 17x26x5 (Standard Bearings)
Spoke type: Straightpull (straight)
max. permissible spoke tension: 1100N
maximum system weight: 115 kg (rider, bike, clothing and possibly luggage)
maximum rider weight: 100 kg
Color: black
Weight according to manufacturer: from 125g
Weight weighed: 127g
Technical specifications rear hub:
Application: MTB, Enduro, Downhill, E-Bike
Hub material: Aluminum, steel (pawls)
Freehub body material: Aluminum
Axle standard: 12x148 mm thru axle
Number of holes: 28
Brake rotor mount: 6-hole disc brake
Freehub compatibility: Shimano HG 10- / 11- / 12-speed Road (for MTB with supplied 1.85 mm spacer)
Freehub type: 6 pawls, toothed ring with 69 teeth
Bearing: 4x industrial bearings (2x 61803-2RS, 1x 61903-2RS, 1x61803-full ball)
Spoke type: Straightpull (straight)
max. permissible spoke tension: 1100N
maximum system weight: 115 kg (rider, bike, clothing and possibly luggage)
maximum rider weight: 100 kg
Color: black
Weight according to manufacturer: from 221g
Weight weighed: 226g
Weight of hub set according to manufacturer: 346g
Weight hub set weighed: 353g
Scope of delivery:
1x TUNE front hub Nano Boost 6B
1x TUNE rear hub Nano Boost 6B
1x TUNE cassette spacer spacer ring 1.85 mm
MPN:
Hubset.NaBoo.28.12.12.BeaStd.HG12.POE138.bck
