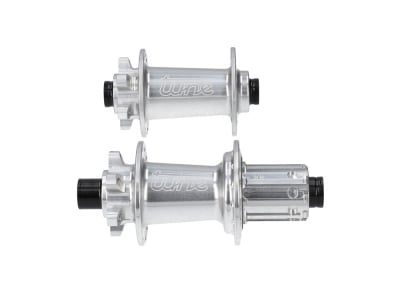

TUNE Hub Set Micro Boost 6B 6-hole | 15x110 mm / 12x148 mm | Standard Bearings | Freewheel Shimano HG 10- / 11- / 12-speed | silver
The Micro hub set is the ideal introduction to the world of lightweight MTB hubs from Tune. As usual with Tune, the new Micro Boost hubs are CNC-milled from 7075 aluminum. The special feature of the front hub is a new hub flange that does not require a carbon ring. The symmetrical design ensures optimum balance of the front wheel. The POEtry138 freehub mechanism keeps play to a minimum when starting off, so that direct power transmission is possible. The J-bend flanges make the hubs particularly stable yet lightweight.
Like all Tune hubs, the Micro Boost is produced, milled and assembled entirely in the Black Forest.
We will be happy to provide you with a quote for a complete custom wheelset with rims and spokes of your choice. Just send us an e-mail to [email protected]!
Technical specifications front wheel hub:
Area of application: MTB, enduro, downhill, e-bike
Material: Aluminum
Axle standard: 15x110 mm thru axle
Number of holes: 28
Brake disc mount: 6-hole disc brake
Bearings: 2 x ball bearings ABEC5 17x26x5 (Standard Bearings)
Spoke type: J-Bend
max. permissible spoke tension: 1100N
Maximum system weight: 115 kg (rider, bike, clothing and possibly luggage)
maximum rider weight: 100 kg
Color: silver
Weight according to manufacturer: from 132g
Weight weighed: 129g
Technical specifications rear hub:
Application: MTB, Enduro, Downhill, E-bike
Material hub: Aluminum, steel (pawls)
Freehub body material: Aluminum
Axle standard: 12x148 mm thru axle
Number of holes: 28
Brake rotor mount: 6-hole disc brake
Freehub compatibility: Shimano HG 10- / 11- / 12-speed Road (for MTB with supplied 1.85 mm spacer)
Freehub type: 6 pawls, toothed ring with 69 teeth
Bearing: 4x industrial bearings (2x 61803-2RS, 1x 61903-2RS, 1x61803-full ball)
spoke type: J-Bend
max. permissible spoke tension: 1100N
maximum system weight: 115 kg (rider, bike, clothing and possibly luggage)
maximum rider weight: 100 kg
Color: silver
Weight according to manufacturer: from 242g
Weight weighed: 238g
Weight of hub set according to manufacturer: 374g
Weight hub set weighed: 367g
Scope of delivery:
1x TUNE front hub Micro Boost 6B
1x TUNE rear hub Micro Boost 6B
1x TUNE cassette spacer spacer ring 1.85 mm
MPN:
Hubset.MiBoo.28.12.12.BeaStd.HG12.POE138.silver
