Description
SRAM XX1 Eagle DUB SL crank including Quarq DUB AXS Power Meter Spider BOOST 32 teeth
The lightest MTB crank from SRAM in combination with the latest Quarq DZero AXS power meter generation. Through the use of the carbon tuned manufacturing process, the wall thickness of the XX1 Eagle DUB crank could be selected at all points so that it has a very high rigidity and is still an absolute lightweight. The DUB aluminum crankshaft with a diameter of 28.99 millimeters is compatible with the matching DUB bottom bracket with all common MTB bottom bracket housings. The crank arms impress with their shiny UD carbon finish.

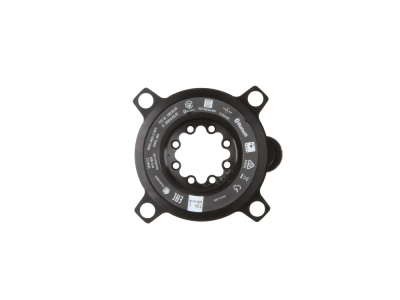

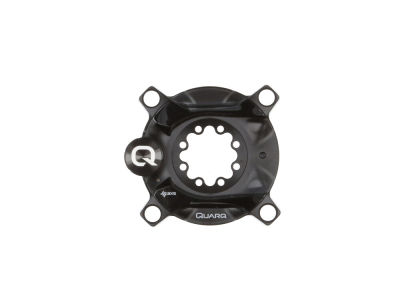

Features Quarq DZero AXSPower meter
- MagicZero - automatic check and recalibration of the power meter
- AXS App - for firmware updates and settings
- 10K Active Temperature Compensation - automatic temperature compensation with 10000 programmed data adjustment points
- Wireless data transmission via Bluetooth Low Energy or ANT +
- OmniCal - chainring changes do not require recalibration and have no influence on the measuring accuracy
- Cadence measurement via acceleration sensors (no additional magnet required!)
- Waterproof construction according to IPX7 standard
- LED power indicator informs you about the battery level
- 200 hours of operating time (tool-free battery replacement, CR2032)
- Power Balance - calculates the power distribution between your left and right leg
- +/- 1.5% measurement accuracy
NOTE: The Spider is only suitable for SRAM DUB Powermeter Ready cranks with 8-screw mount ! The spider and the crank are delivered in separate packaging. The spider must be mounted on the crank itself.
Technical specifications:
Material crank: carbon
Wave: SRAM DUB | 28.99 mm
Q factor: 168 mm
Crank arm length: 170 or 175 mm
Compatibility bottom bracket: SRAM DUB MTB (optional, not included)
Material spider: aluminum
Waterproof: yes, IPX7
Measurement: on both sides
bolt circle diameter : 104 mm
Chainring: 32 teeth X-Sync-2
chain line : 52 mm BOOST
Technology: SRAM AXS, Quarq Power Meter
Data transfer: ANT + and Bluetooth
Power supply: CR2032 battery
Battery life: up to 200 hours
Firmware updates: yes, Qalvin BLE app
Color: Black
Finish: UD carbon, glossy
Weight according to the manufacturer: not specified
Weight weighed: 527g (BOOST, 175 mm incl. Crank boots and 32 teeth chainring)

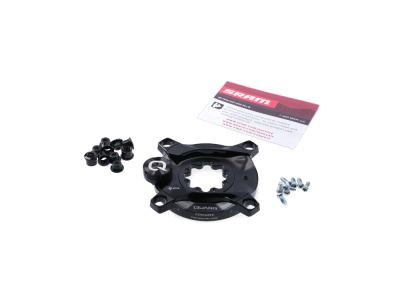

Scope of delivery:
1x SRAM XX1 Eagle DUB SL crank
1x Quarq DUB AXS Power Meter
1x chainring 32 teeth
1x set of chainring bolts, 4 pieces (steel)
1x set of screws for fastening the power meter, 8 pieces (steel)
1x pair of crank boots
1x pedal washers
without bottom bracket
Note: Please note the information on the battery regulation .
