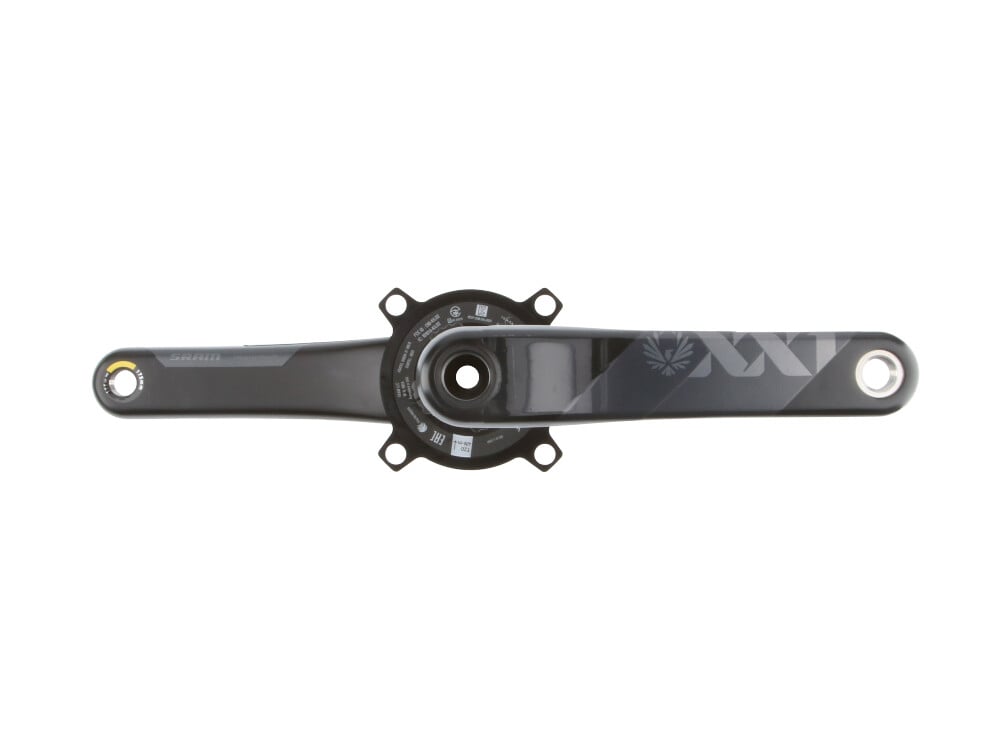

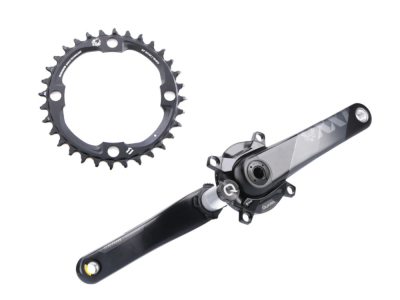

SRAM XX1 Eagle DUB SL crank incl. Quarq DUB AXS Power Meter Spider BOOST 32 teeth
The lightest MTB crank from SRAM in combination with the latest Quarq DZero AXS power meter generation. Thanks to the use of the carbon tuned manufacturing process, the wall thickness of the XX1 Eagle DUB crank could be selected in such a way that it has a very high stiffness at all points and is still an absolute lightweight. The DUB aluminum crankshaft with a diameter of 28.99 millimeters is compatible with the matching DUB bottom bracket with all common MTB bottom bracket housings. The crank arms are visually impressive with their shiny UD carbon finish.

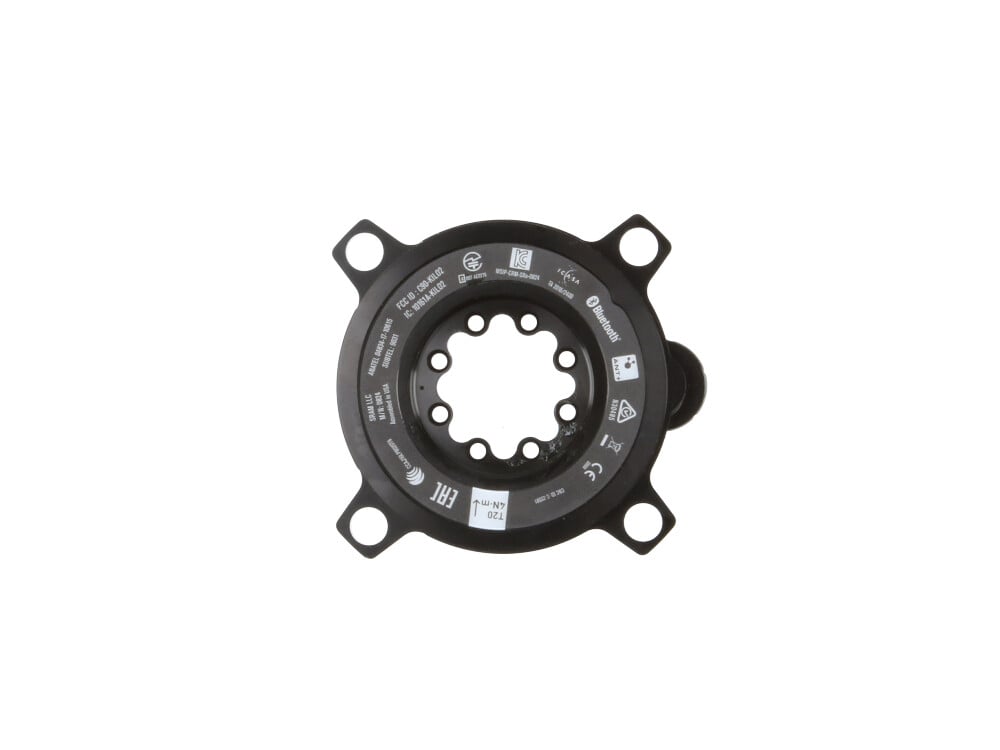

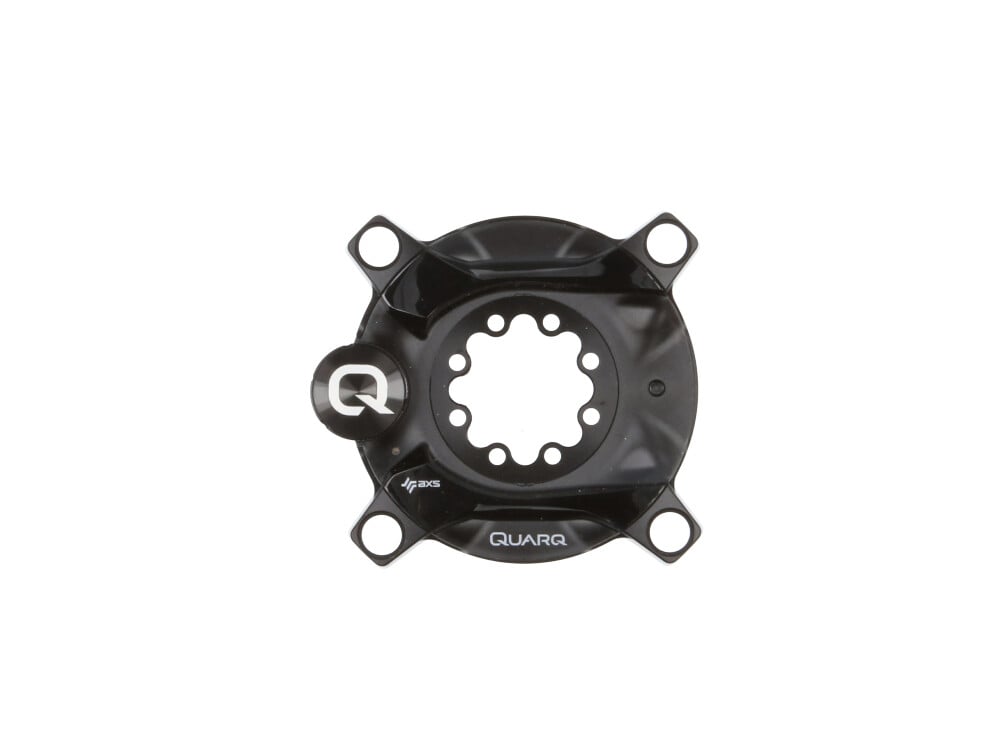

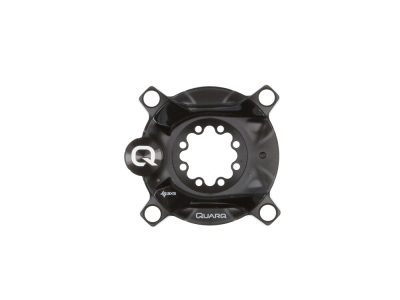

Features Quarq DZero AXSPowermeter
- MagicZero - automatic check and recalibration of the power meter
- AXS app - for firmware updates and settings
- 10K Active Temperature Compensation - automatic temperature compensation with 10000 programmed data adjustment points
- Wireless data transmission via Bluetooth Low Energy or ANT+
- OmniCal - chainring changes do not require recalibration and have no effect on the measurement accuracy
- Cadence measurement via acceleration sensors (no additional magnet required!)
- Waterproof construction according to IPX7 standard
- LED power indicator informs you about battery level
- 200 hours operating time (tool-free battery change, CR2032)
- Power balance - calculates the power distribution between your left and right leg
- +/- 1.5% measurement accuracy
NOTE: The Spider is only suitable for SRAM DUB Powermeter Ready cranks with 8-bolt mount! The spider and the crank are supplied in separate packaging. The spider must be mounted on the crank itself.
Technical data:
Crank material: Carbon
Shaft: SRAM DUB | 28.99 mm
Q-factor: 168 mm
Crank arm length: 170 or 175 mm
Bottom bracket compatibility: SRAM DUB MTB (optional, not included)
Spider material: Aluminum
Waterproof: yes, IPX7
Measurement: both sides
Bolt circle: 104 mm

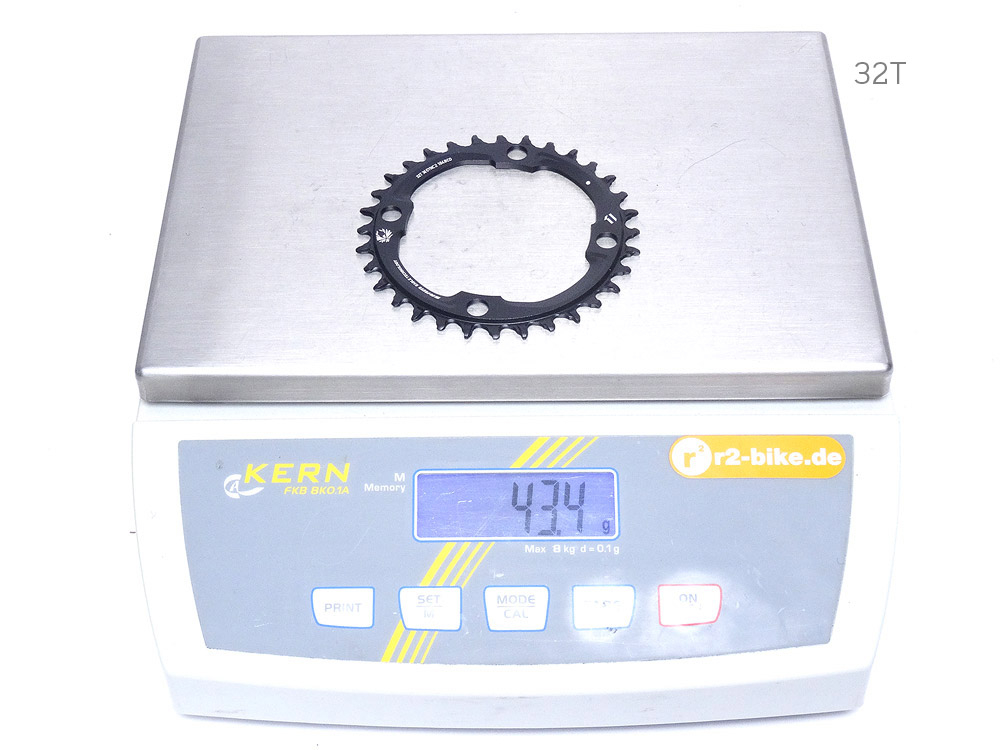

Chainring: 32 teeth X-Sync-2
Chainline: 52 mm BOOST
Technology: SRAM AXS, Quarq Power Meter
Data transmission: ANT+ and Bluetooth
Power supply: CR2032 battery
Battery life: up to 200 hours
Firmware updates: yes, Qalvin BLE app
Color: black
Finish: UD carbon, glossy
Weight according to manufacturer: n.a.
Weight self-weighed: 527g (BOOST, 175 mm incl. crank boots and 32 tooth chainring)

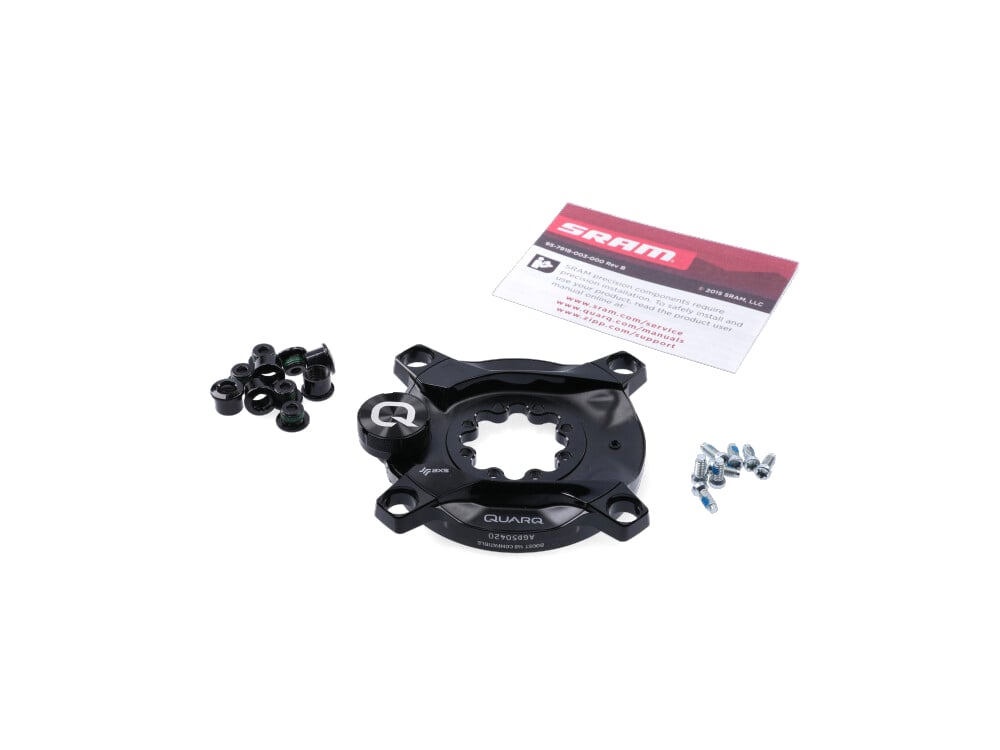

Scope of delivery:
1x SRAM XX1 Eagle DUB SL crank
1x Quarq DUB AXS Power Meter
1x chainring 32 teeth
1x set of chainring bolts, 4 pieces (steel)
1x set of bolts for power meter mounting, 8 pieces (steel)
1x pair of crank boots
1x pedal washers
without bottom bracket
Note: Please note the information on battery regulations.
