Description
SRAM brake disc HS2 Rotor Rounded Edges 220 mm | Center lock
The HS2 brake discs were specially developed for the requirements in the MTB sector. Compared to the previous versions, both the braking performance and the heat dissipation could be improved. In addition, the HS2 discs tend to be less noisy. These properties were achieved through a new profile that improves the traction of the brake pads. The improved heat management is achieved via 6 recessed spokes with a special heat-dissipating coating. In addition, the thickness of the friction ring has been increased from 1.8 mm to 2.0 mm compared to the SRAM Centerline discs. Thanks to these optimizations, the braking performance could be increased by 7% and in the Garda test the window temperature could be reduced by 40 degrees. Rounded edges on the top of the lens minimize the risk of injury and comply with the guidelines of the UCI World Cycling Association. Another advantage is that they make it easier to install the wheel, because the rounded top prevents it from tilting in the brake calliper. The discs are available with diameters of 160 - 220 millimeters. Thanks to their high stability, the HS2 brake discs are also ideally suited for E-MTB use.
Technical specifications:
Material braking surface: steel
Material spider: -
Execution: one-piece
Disc mount: Center Lock
Diameter: 220 mm
Thickness: 2.0mm
Friction ring width: n / a
Recommended brake pads: metal or resin
Technology / Features: Rounded Edges
Color: silver, black
Weight according to the manufacturer: n / a

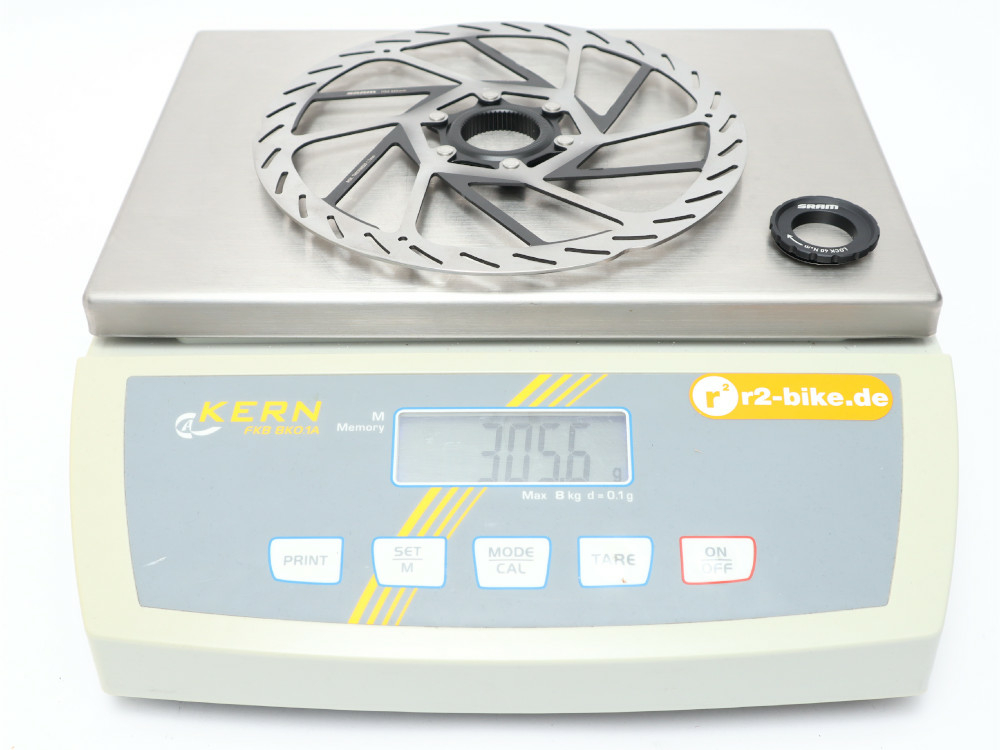

Weight weighed: 297g (without lockring)
Scope of delivery:
1x SRAM brake disc HS2 Rotor Rounded Edges 220 mm
1x lockring
