Description

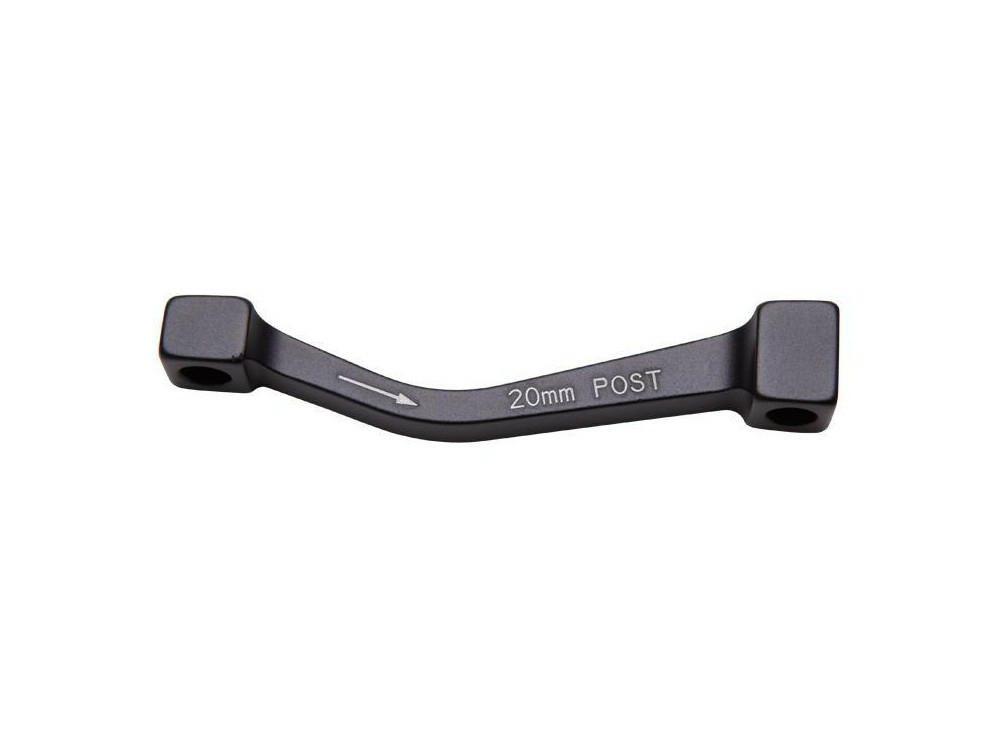

SRAM Adapter Post Mount +20 | black
This brake caliper adapter allows you to mount almost any PM brake on various post mount forks and rear structures. The adapter is made of aluminum, CNC-machined and black anodized.
The adapter extends the standard brake disc size of the fork or rear triangle by 20 mm. Please check your fork or rear triangle which post mount variant is installed. Based on the standard brake disc size, the adapter increases the brake disc size by the specified information in millimeters.
PM5 = 140mm standard size
PM6 = 160mm standard size
PM7 = 180mm standard size
PM8 = 200/203mm standard size
Technical specifications:
Material adapter: aluminum
Material screws: steel
Extension in front: +20 mm
Rear extension: +20 mm
mount Fork: Post Mount PM
mount triangle mount: Post Mount PM
Brake mount : Post Mount PM
Color: Black
Weight according to the manufacturer: kA

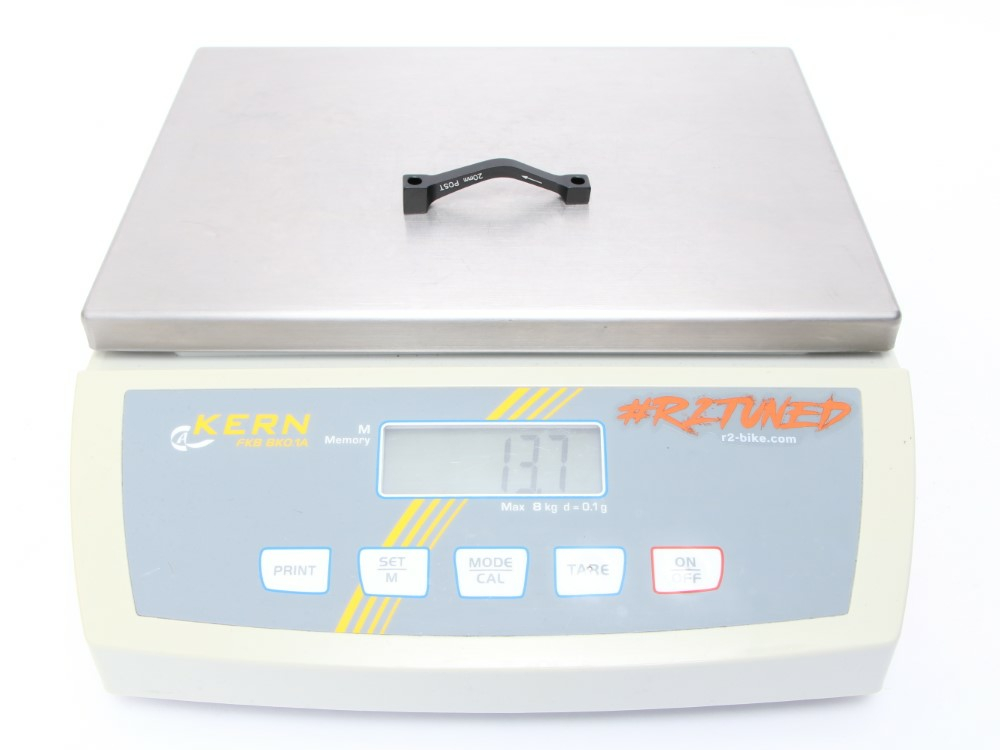

Weight weighed: 13.7g

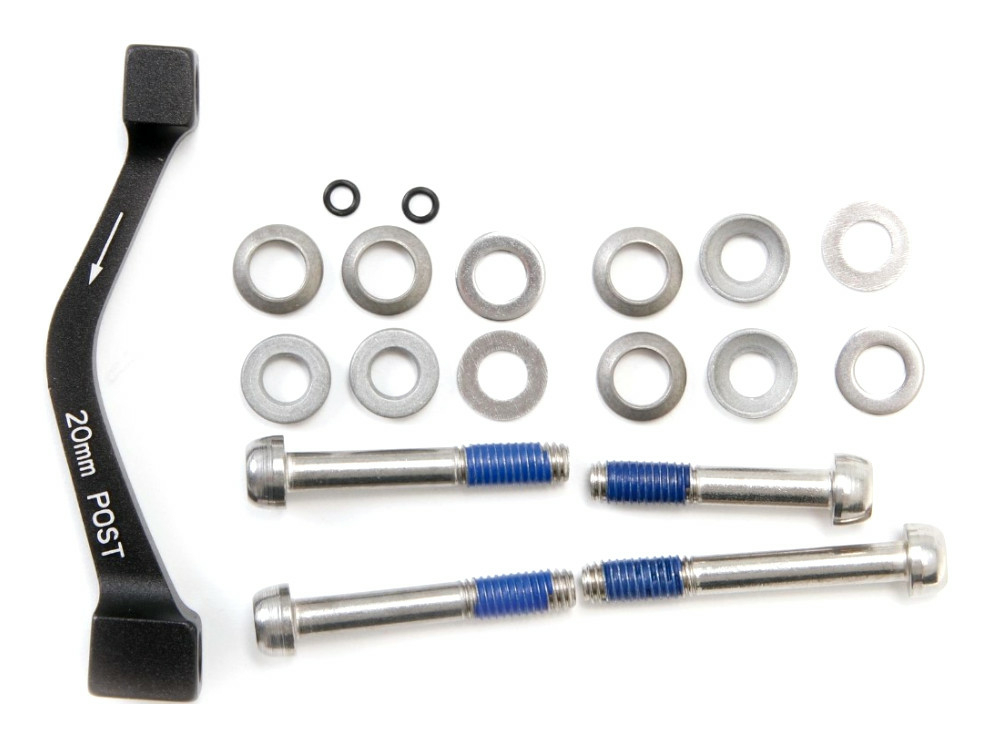

Scope of delivery:
1x brake caliper adapter SRAM Post Mount +20
1x standard screw set
1x screw set CPS
