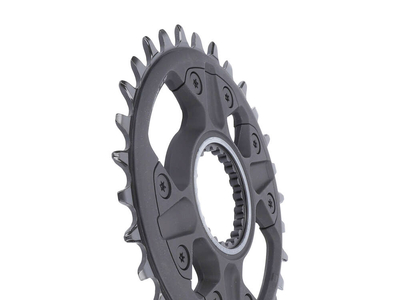

SHIMANO Deore Chainring Direct Mount | 1x 12-speed for FC-M6100 | FC-M6120 | FC-M6130 crank
The matching 1x Direct Mount chainrings for the Deore FC-M6100/6120/6130 cranks . With their special Dynamic Chain Mount+ design, they guide the CN-M6100 chain safely and with little vibration, even on rough trails. In combination with the Hyperglide+ chain, the chainrings work with standard, BOOST and SuperBoost Plus rear hubs.
The chainrings are attached to the crank with a lockring, which has the mount the Shimano bottom bracket tool. Shimano also offers a special assembly tool for easier handling of the thin lock ring. The chainrings are available with 30 and 32 teeth.
Technical specifications:
intended use : MTB
Material: aluminum, composite, steel
Technology: Narrow Wide
bolt circle diameter : -
Mounting: Direct Mount Shimano
Number of teeth: 30 or 32 teeth
Compatibility cranks : Shimano Deore
Compatibility chain: 12-speed Shimano
Mounting position: -
chain line : 52 mm, 55 mm or 56.5 mm | depending on the crank used
Offset: Default or Boost/Outboard | depending on the crank used
Adjustment options: none
Range (ovalization): -
Timing (force application): -
Color: Black
Weight according to the manufacturer: kA
Weight weighed: 135g (30 teeth)
Scope of delivery: 1x SHIMANO Deore chainring Direct Mount | 1x12 for FC-M6100 | FC-M6120 | FC-M6130 crank
