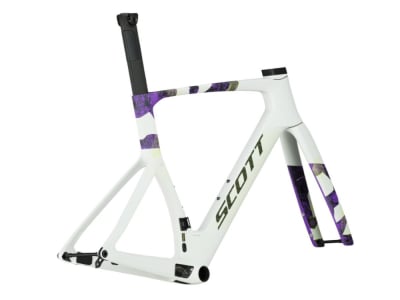

SCOTT Frame Set Road Foil RC PRO HMX | 2025

%

Description
Variations

SCOTT frameset Road Foil RC PRO HMX | 2025

Scott has created the RC Pro series for those who put pure speed above all else. It gives you the equipment you need to push the boundaries and take victory after victory, whether you're racing against the clock or directly against the competition.

The Foil RC PRO HMX enters the 2025 model year with an eye-catching design and still boasts a number of features that make it the ultimate racing weapon. There are the HMX carbon fibers, the aerodynamic shape and the massive fork.

The HMX carbon fibers are the main contributor to the low weight and yet high stiffness. These are produced exclusively for Scott and come very close to the ideal balance between weight, stiffness and comfort. Particularly critical and stressed areas are additionally reinforced.

Aerodynamically, the Foil has always been in a league of its own. The streamlined shape starts with the fork and is consistently carried through to the rear triangle. Nothing should be unnecessarily exposed to the wind and impair your propulsion. For example, the brakes are mounted close to the frame to prevent unnecessary turbulence. The same is achieved by the close position of the rear wheel on the seat tube. The elongated, solid-looking head tube allows the air to glide past undisturbed and the seat post clamp is integrated almost invisibly. Everything looks well thought out.

The clean look is achieved by the ICCR cable routing, in which all cables and lines run through the frame. Every conceivable constellation has been considered. You can install both mechanical and electronic groupsets. The cables are neatly routed through inserts in the frame, where they are well protected from dirt and rain.

The set includes a Scott Foil fork, the Syncros Carbon Aero seatpost and an integrated headset from Acros. Everything has been colour-matched to the frame and results in a uniform appearance that is guaranteed to make you envious.

Technical data:

Area of use: road bike, time trial, triathlon
Frame sizes: S, M, L, XL
Frame material: HMX SL Carbon
Fork material: HMX SL Carbon
Wheel size: 28" Road
Head tube: 1"-1.5", fully integrated IS44/35 36°-45° | IS52/40 45° - 45°
Seat tube (inner diameter): oval
Seat tube (outer diameter): oval
Bottom bracket standard: Pressfit PF BB86 (86.5 x 41 mm)
Axle standard fork: 12 x 100 mm thru axle
Axle standard frame: 12 x 142 mm thru axle
Front disc brake mount: Flat mount
Rear disc brake mount: Flat mount
Max. brake disk size: front: 180 mm | rear 160 mm
Gear type: mechanical or Di2
Front derailleur mount: Braze-on
Cable routing: internal
max. system weight: 120 kg (rider incl. clothing and possible luggage)
maximum tire width: 30 mm
Feature: -
Color: beluga grey/progressive purple - white with purple-black decals

Weight frame according to manufacturer: 985g
Weight frame itself weighed:
Weight fork according to manufacturer: 475g (with uncut steerer tube)
Weight of fork itself weighed:

Scope of delivery:

Scott Road Foil RC Pro HMX frame | 2025
Scott HMX full carbon fork
Acros AIF-1138 headset
Expander and Ahead cap
Syncros Duncan SL Aero CFT carbon seatpost
Syncros thru axle
Standard derailleur hanger

MPN:

423251
