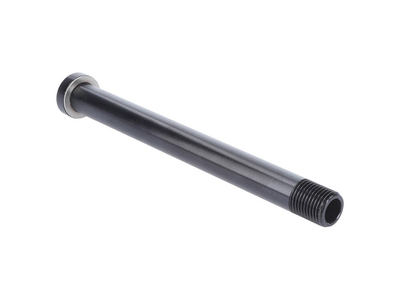

DT SWISS thru axle HR RWS Plug In MTB with lever | 12x148 mm BOOST X-12
The patented RWS wheel attachment system from DT Swiss is stiff, safe and easy to use. The plug-in variant offers all the advantages of tool-free mounting of the thru axle, if you want. If you prefer the clean look of a screw axle, simply pull off the lever unit and stow it in the backpack. Or leave them at home. There is a 6 mm hexagon on the axle which can be operated with any standard tool. There is also a 6 mm hexagon on the lever unit which can of course also be used as a mini tool on the go.
Clean and smart: the RWS plug-in.
Because there are no plastic parts in the power flow with the RWS, the clamping force is independent of the temperature and therefore the RWS is 100% suitable for disc brakes!
Due to the direct transfer of the lever force to the thread, the RWS can achieve up to 50% higher clamping force than with conventional quick releases. This is not only safer, but also increases rigidity, which is particularly noticeable with disc brakes.
Technical specifications:
Material: aluminum
Hub standard: 12x148 mm thru-axle BOOST
Compatibility: MTB frame with 12x148 mm X-12 thru axle system
Axle length: 168.5 mm
Axle diameter: 12 mm
Thread pitch: M12x1.0
Thread length: 15.0 mm
Contact surface, not thread side: conical
Tool holder: Plug-in lever with 6 mm hexagon socket
Max. permissible torque: 15 Nm
Color: Black
Weight according to the manufacturer: 70g (with lever)
Weight weighed: 42g (without lever), 69g (with lever)
Scope of delivery: 1x DT SWISS thru axle HR RWS Plug In MTB with lever | 12x148 mm BOOST X-12
