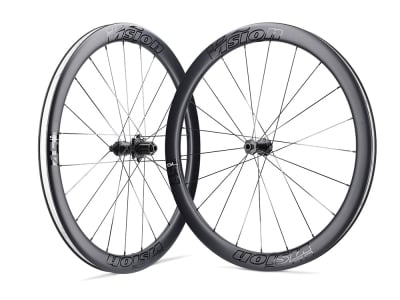

VISION Wheelset 28" Metron 45 SL Center Lock | SRAM XDR

%

Description

VISION wheelset 28" Metron 45 SL Center Lock | SRAM XDR

With the Metron SL series, Vision plays in the top wheel league and regularly sets standards. Developed together with professional racing cyclists, all components are perfectly matched to each other in order to perfect the optimum interplay of stiffness, aerodynamics and low weight.They are manufactured by hand, which guarantees high quality and durability. 45 mm rim height means that this wheelset makes both fast rides on flat terrain and detours into hilly terrain a pleasure.

The rims are made entirely of carbon, and it's not just the look on the scales that will make your heart happy - you can immediately convert your energy into propulsion without any loss when pedaling hard. Nothing is wasted. The special shape has been optimized in the wind tunnel and, together with the blade spokes, reduces air resistance and thus enables higher speeds with less effort. The enormous 21 mm inner width also provides perfect support for wider tires, which prevents them from kinking in fast bends and ensures greater riding stability and better damping capacity. In addition, the rim is of course designed for tubeless systems, allowing you to ride with lower air pressure and further improving comfort and grip. In addition to the excellent workmanship, the self-locking ABS nipples, which use a special adhesive to prevent the spokes from loosening, ensure durability and permanently smooth running.

The hubs are also an in-house development by Vision. With a rather discreet appearance, they impress with their high bearing quality and smooth running. Their body is forged from high-quality aluminum, which results in high rigidity. On the rear wheel, a toothed disc freewheel with conically arranged discs ensures uninhibited propulsion. With this, 72 engagement points interlock and reduce the free travel to an incredible 5°. In addition, spiral-milled guide grooves on the freehub body, on which the two toothed pulleys sit, ensure perfect functioning.
In order to reduce the susceptibility to punctures, the straight-pull design was chosen. This eliminates the spoke bend, which is prone to breakage. The 2:1 lacing is also interesting. This makes it possible to reduce the number of spokes, which saves weight without negatively affecting stability.

Technical data

Application: Road bike
Wheel size: 28" (ETRTO: 622-21 mm)
Rim type: clincher and folding tires
Brake type: Disc brake
Brake disc mount: Center Lock
Hub material: Aluminum, steel
Rim material: Carbon
Spoke material: Steel
Inner width: 21 mm
Outer width: n.a.
Rim height: 45 mm
Number of holes: front: 21 | rear: 24
Spokes: Aero straight pull (straight)
Spoke pattern: front: left 3-cross, right radial | rear: drive side 3-cross, non-drive side radial
Axle standard front: 12x100 mm thru axle
Rear axle standard: 12x142 mm thru axle
Front bearing: 2x industrial ball bearings (28x17x7 mm)
Rear bearing: 2x industrial ball bearings (drive side 30x17x7 mm, non-drive side 28x17x7 mm) + 2x industrial ball bearings in freehub body
Freehub compatibility: 12-speed SRAM XDR
Freehub type: toothed pulley freehub, 2 toothed pulleys, 72 ratchets
recommended tire width: 25 - 32 mm (28 - 32 mm aerodynamically optimized)
max. air pressure: 7 bar (103 psi)
tubeless capable: yes
maximum system weight: n/a
valve hole: Presta valve (SV)
Color rim / finish: black / UD Carbon matt
Color decor: glossy black
Color hubs: black

Weight according to manufacturer: 1372g
Weight self-weighed: k.A.

Scope of delivery:

1x front wheel
1x rear wheel
1x tubeless sweeper tape
2x tubeless valve
2x Center Lock lock ring

Note: The images show the wheelset with Shimano freehub body and are for illustrative purposes only. The version with SRAM XDR freehub body is supplied.
