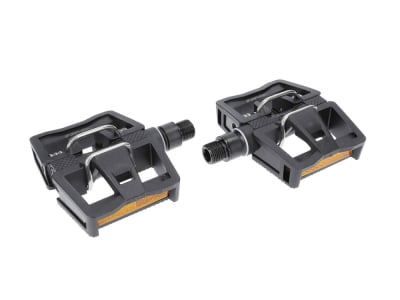

TIME pedals LINK | black
With the LINK pedals, TIME offers you a combination pedal. This flexible version is perfect for beginners or commuters who want to switch between platform and clipless pedals as required. The large platform (71 x 97mm) offers your shoe a secure footing or you can click into the tried-and-tested ATAC clipless system to be even more efficient on the road. The ATAC system works simply and reliably. Clipping in and out is easy even in the most adverse weather conditions. Thanks to the self-cleaning concept, the pedal doesn't get stuck in mud and sludge. During the pedaling movement, the mechanism is permanently freed from mud via the contact between the cleat and pedal, so that it functions perfectly even in the worst conditions.
The enclosed pedal plates have a release angle of 10°. Cleats with a release angle of 13° or 17° (depending on how they are attached to the shoes) can be purchased as an option.
Technical data:
Area of application: MTB / Gravel / Trekking / Urban
Pedal axle material: steel
Pedal body material: injection-molded fiberglass composite
Contact surface material: injection-molded fiberglass composite
Contact surface size: 71x97 mm
Bearing: steel
Freedom of movement: along pedal axis +/- 2.5 mm | heel rotation +/- 5°
Release hardness: not adjustable
Release angle: 10° cleats (included); 13° / 17°, adjustable via cleats (optional)
Q-factor: axle length 54 mm
Compatibility: Time ATAC MTB, for shoes with Shimano SPD standard
Weight limit: n/a
Color: black
Weight according to manufacturer: 346g (pair, without cleats), 390g (pair incl. cleats)
Weight self-weighed: 350g (pair, without cleats), 392g (pair incl. cleats)
Scope of delivery:
1x pair of TIME pedals LINK | black
1x pair of ATAC EASY 10° cleats
