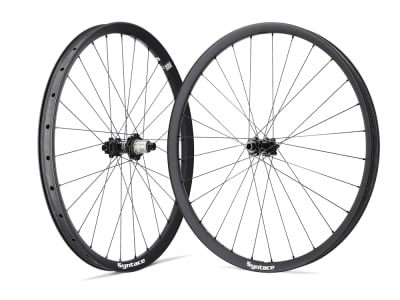

SYNTACE Wheelset 29" C33 Gravity Carbon Straight | Shimano Micro Spline

%

Description

SYNTACE wheelset 29" C33 Gravity Carbon Straight | Shimano Micro Spline

Syntace wheels set standards in terms of durability and stability. With these you can really let it rip, enjoy the trail and don't have to worry about your material.
The carefully selected individual parts developed by Syntace are always state of the art and are often regarded as the source of ideas. Syntace guarantees consistent quality in wheel construction with the help of the spoking and centering robot they co-developed. This achieves the same quality as manual work.

Syntace C33 Gravity carbon rims
With the C33 carbon rims, there are no limits to your adventures. They are stiff, excellently finished and yet do not break the scales. Special attention was paid to robustness and puncture protection. The ingenious reinforcement of the hookless rim flange reduces the risk of damage from punctures by 30 % compared to conventional profiles. The trapezoidal cross-section can also distribute load peaks better and ensures torsional rigidity and direct steering behavior. In addition, a carbon strip was used in the spoke hole area, which prevents the nipples from tearing out and allows a higher spoke tension.
To prevent sudden air loss when riding with low tire pressure, there are "snap-fit bumps" on the rim base, which hold the tire in place and guarantee maximum tightness when using tubeless tires. They also prevent the tire from jumping off in fast bends.
Thanks to their enormous inner width, the C33 rims can also accommodate very wide tires. This results in greater comfort and better grip. They also allow you to roll better over obstacles and save valuable energy.

Syntace Straight hubs
Like all Syntace hubs, the Straight model is a true technical masterpiece. Beautifully CNC-machined and equipped with high-quality industrial ball bearings, they are unimpressed by even the most adverse and toughest conditions.
The very stiff front wheel hub enables precise steering and gives you a lot of security even in difficult passages. At the rear, a pawl freehub with 36 ratchets ensures immediate propulsion and a long service life. You don't have to do without the typical Syntace sound either, although it is much more muffled than on the previous model.

Spokes
Syntace only uses the specially developed, computer-optimized Syntace Genius 1.7 spokes. Made exclusively for Syntace by Sapim from particularly tough and tensile Swedish steel, the meticulous manufacturing process allows shorter and more stable sections in the most heavily loaded spoke ends, while at the same time reducing weight. For emergency repairs, your wheelset is also compatible with standard Straightpull spokes from other manufacturers. The self-locking Q-Lock nipples guarantee high mileage with low service requirements.

10-year (3+7) wheel warranty
Syntace employees are committed to the high quality of their products. In the event of damage due to material or manufacturing defects, the wheel or wheel part will be repaired or replaced free of charge within the first 3 years of the warranty, and thereafter until the end of the 10th year for a flat-rate usage fee of 50% of the current recommended retail price.

Technical data:

Area of use: Trail, Enduro, Downhill, E-Bike
Wheel size: 29" (622-33 mm)
Rim type: clincher and folding tires
Brake type: Disc brake
Rim material: Carbon
Inner width: 33 mm
Outer width: 40 mm
Rim height: 25 mm
Offset: no
Number of holes: 28 holes
Spokes: Syntace Genius 1.7 made of Swedish steel, triple crossed, straight pull (straight)
Spoking pattern: 3-crossed
Axle standard front: 15x110 mm thru axle Boost
Rear axle standard: 12x148 mm thru axle Boost
Brake rotor mount: 6-hole
Front bearings: 2x industrial bearings
Rear bearing: 4x industrial bearings
Freehub compatibility: 12-speed Shimano Micro Spline
Freehub type: pawl freehub, 36 ratchets
recommended tire width: n.a.
max. air pressure: n/a
maximum system weight: 130 kg (rider, bike, clothing and possibly luggage)
tubeless capable: yes
valve hole: Presta valve (SV)
Color rim / finish: black / UD Carbon matt
Color decor: grey-red
Color hubs: glossy black

Weight according to manufacturer: 1850g
Weight self-weighed: 1872g

Scope of delivery:

1x SYNTACE front wheel 29" C33 Carbon Straight | 15x110 mm Boost
1x SYNTACE rear wheel 29" C33 Carbon Straight | 12x148 mm Boost | Shimano Micro Spline

Please note
Contrary to the illustration, the wheelset is of course supplied with a Shimano Micro Spline freehub body.
