SUPERNOVA E-Bike Headlight M99 Mini PRO E-25 - 21 W Power Version | StVZO
Supernova M99 Mini PRO in the 21 watt power version.
The new generation of headlights is 50% smaller and 40% lighter than its big brother. It is the first to enable the use of high beam, according to the new 2017 StVZO. In its revised version with optional 21 watt power, it is up to 30% brighter on Shimano EP8 or new Brose motors, for example!
M99 Matrix Mirror
The coordination of the 99 individually calculated mirror surfaces with the intelligent LED matrix was a complex development project. Only through the use of up to 9 intelligently controllable automotive LEDs in combination with multiple computer calculations of the concave and convex catoptric facets of the mirror was it possible to create this future-oriented product.
Calculated ice cold
In order for the high-performance LEDs to work efficiently, they need optimal cooling. This is where Supernova's many years of experience come into play. By carefully selecting the materials and simulating the heat, the housing and electronics were designed in such a way that the LEDs can achieve their maximum performance at all times.
Light levels:
- High beam: 1500 lumens, 300 lux (8-21W)
- Low beam: 450 lumens, 150 lux (5.2W)
Technical specifications:
Material: CNC milled aluminum
Dimensions (L x W x H): 38 x 78 x 50 mm (without cable)
Supply voltage: 5 - 13.5 V DC
Power supply: 1300 mm Supernova connection cable
Compatibility E-Bike: for 12 V Shimano, Brose, TQ, Neodrives and other motors with> 21 W for light
Light source: LED
Optics: M99 Matrix Mirror
Functions: low beam, high beam
Protection class: IP67 waterproof
Approval StVZO: K mark, for e-bikes up to 25km / h
Color: matt black
Weight according to the manufacturer: 120g (without cable)
Weight weighed by yourself: -
Scope of delivery:

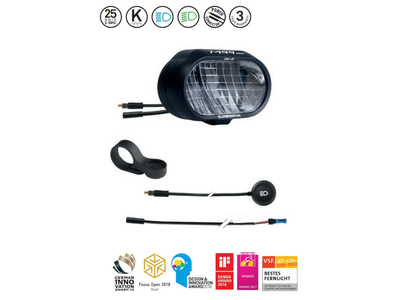

1x SUPERNOVA E-Bike headlight M99 Mini PRO E-25 - 21 W Power Version | StVZO
1x 1300 mm connection cable
1x magnetic high beam button for decentralized handlebar clamping 22 mm
