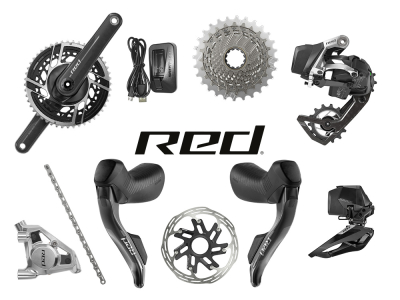

SRAM RED AXS road bike groupset 2x12 | 50-37 teeth
Evolution instead of revolution - the new Red AXS groupset has been revised in all areas to offer you improved ergonomics, improved shifting performance and a wider range of gear ratios. In addition, SRAM has succeeded in reducing the weight of almost all components in order to conquer the throne of the lightest electronic groupset. You can personalize your Red groupset even more via the proven SRAM AXS app.
AXS HRD shift-brake system With the new AXS HRD shift-brake system, SRAM has made the biggest development leap among the new Red components. Both the shape of the hoods and the carbon brake lever have been redesigned. In addition to improved ergonomics for a wider range of hand sizes, the redesigned brake levers offer significantly better power transmission from all handlebar positions. Thanks in part to a modified pivot point and the relocation of the primary piston to the shifter body, the brakes can be applied with just one finger both in the lower handlebars and in the hoods. Another highlight is the additional shift button integrated into the hoods, which can also be used to operate ANT+-compatible bike computers. The textured main shift paddles work according to the proven eTap shift logic. One rocker switch for upshifting and one rocker switch for downshifting. If both paddles are operated simultaneously, the front derailleur is shifted. The shifting behaviour can be personalized via the SRAM AXS app and additional SRAM Wireless Blip Shifters can also be integrated. The lever width can of course be adjusted using an easy-to-reach hexagon socket screw. Independently of this, the pressure point on the lever can also be adjusted to prevent contact between the lever and handlebars.
The brake callipers, which have also been redesigned, are not only stiffer but also significantly lighter. The pad gap has been widened for easy installation and friction-free operation. Bleeding Edge technology ensures simple and clean bleeding.
Thanks to the slim design, SRAM was able to save an impressive 83 grams of weight on the Red HRD shift-brake system compared to the previous version.
Rear derailleur The new Red AXS rear derailleur has become even lighter and more efficient. Compared to the previous version, the engineers at SRAM were able to save 16 grams. Larger derailleur pulleys with ceramic bearings and X-Sync tooth profile ensure even more efficient chain operation. The speed-dependent Orbit-Fluid vibration damping ensures reliable chain guidance, even in off-road use. You can easily configure and fine-tune the rear derailleur using your smartphone via the SRAM AXS app. An ANT+ transmitter integrated into the rear derailleur enables communication between your bike computer and the rear derailleur.This allows you to display information on the battery charge status and your current gear ratio in your cockpit.
Front derailleur The Red AXS front derailleur ensures fast and precise shifting in all conditions. In addition to a revised derailleur cage, another new feature is compatibility with all SRAM X-Range 2x chainrings from 46-33 to 56-43 teeth. Equipped with the proven SRAM Yaw technology and with Auto Trim function, chain slippage is eliminated in all gear combinations. With the integration of AXS technology, the shifting behaviour of the front derailleur can be personalized via the associated app. The newly developed setup tool makes it easy to adjust the derailleur position.
Crank The previous version was already one of the lightest cranks on the market. Thanks to an optimized layer construction of the hollow carbon crank arms, the engineers were able to reduce the weight of the 2024 version by another 29 grams. The proven X-Range gear ratios with 13 teeth between the large and small chainrings enable clean and crisp shifting without having to counter-shift several gears on the rear derailleur. The one-piece construction of the chainrings reduces weight and ensures high rigidity. The teeth are specially coated for a particularly long service life. The crankshaft was developed for the new DUB Road bottom bracket standard for a wide range of crank applications. The crankshaft is compatible with all standard bottom bracket housings via the corresponding DUB bottom bracket. With the SRAM AXS Powermeter Kit available in our store, the crank can be upgraded to a power measurement system if required.
Chain For the new Red groupset, SRAM has put the proven Red Flattop chain on a diet. Thanks to the hollow-pin design and cut-outs in the inner and outer plates, 13 grams of weight have been saved. The long service life and smooth running of the Red chain have remained the same. In addition to the flattop design, a chrome coating on the inner plates and rollers ensures this.
Cassette Wide range or small gear jumps? The SRAM Red cassettes offer you both. With their X-dome design and milling from a single block, they are also among the lightest cassettes on the market. In contrast to other lightweight cassettes, only the largest sprocket of the Red cassettes is made of aluminum, while the sprocket block is made of durable steel. For fast and clean shifting, they have shifting ramps that have been specially optimized for the electronic SRAM AXS rear derailleurs. SRAM's tried-and-tested 10-tooth sprocket is one of the reasons for the wide range. In addition to the 10-28 and 10-33-tooth versions, there are now also Red-based cassettes with 10-30 and 10-36 teeth.
Paceline X brake rotors The Paceline X brake rotor combines the proven, smooth-running friction ring of the Paceline brake rotor with the lightest aluminum spider that SRAM has ever produced. Optimized for road use, the design with its ventilation holes offers smooth, low-vibration braking performance. The rounded edges on the top of the disc minimize the risk of injury and comply with the guidelines of the UCI. A further advantage is that they make it easier to install the wheel, as the rounded top prevents jamming in the brake calliper.
Charger/batteries The integrated batteries on the rear derailleur and front derailleur have a range of over 1000 kilometers. The charge status can be read at any time via LED lights. The batteries for the rear derailleur and front derailleur are identical and can therefore be replaced on the move. The batteries are recharged within an hour using the charger supplied.
Technical data
Material: aluminum, carbon, plastic
Gears: 2x12
STI version: Shift lever | brake lever for hydraulic disc brake | right and left handlebar side
Battery: CR2032
Brake fluid: DOT 5.1
Brake line: 950 mm | 1800 mm
Brake type: Disc brake | flat mount
Data transmission smartphone | bike computer: Bluetooth, ANT+
Chainring gradation compatibility: 46-33, 48-35, 50-37, 52-39, 54-41 or 56-43 teeth
Cassette compatibility: 10-28, 10-30, 10-30 or 10-36 teeth (not included)
Front derailleur mounting: braze-on (clamp optionally available)
Battery life: approx. 1000 km
Weight according to manufacturer: n.a.
Weight self-weighed: from 2135g (without brake rotors and bottom bracket)
Scope of delivery:
1x SRAM RED AXS shift brake lever 2x12 left and right including flat mount brake calipers and brake hoses (filled)
1x SRAM RED AXS rear derailleur 12-speed including battery
1x SRAM RED AXS front derailleur including battery
1x SRAM RED DUB crank | 50-37 teeth
1x SRAM RED XG-1290 12-speed cassette | silver
1x SRAM RED 12-speed chain 126 left
1x battery charger and charging cable
2x SRAM Paceline X 160 mm | 160 mm brake rotors | Center Lock including lockrings (optional)
1x SRAM DUB Road bottom bracket (optional)
1x quick start guide
