Description

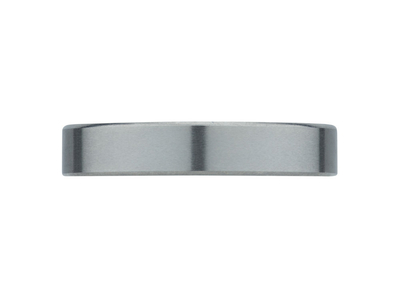

NEWMEN ball bearing BB CB 17x26x5 CN LLH for Road hub body
If a bearing on your bicycle hub is worn out or damaged, it is by no means a case for the scrap yard. A new ball bearing and everything works practically as new.
Newmen only uses high-quality deep groove ball bearings with clearance C3 or CN. Ball bearings with a cage and smooth-running seals are used on all components that rotate easily, such as the hub bodies and freewheels. A ball bearing always needs a certain bearing clearance so that it works continuously and the lubricating film is not interrupted.
This bearing is suitable for the hub body on Newmen FADE Road front and rear hubs.
Important note on assembly:
When pressing in or driving in ball bearings, it must always be ensured that the bearing is always pressed in or driven in over the ring, which is also the press fit of the bearing. For example, they are pressed into the hub over the outer ring. The bearing may therefore only be pressed in or driven in via the outer ring and never via the inner ring.
Technical specifications:
Material: steel
Bearing Type: Industrial Ball Bearing
Dimensions (inner Ø x outer Ø x height): 17x26x5 mm
Seal: 2RS (LLU) - double-sided rubbing seal
Version: CB - angular contact ball bearing
Silver
Weight according to: Manufacturer: kA

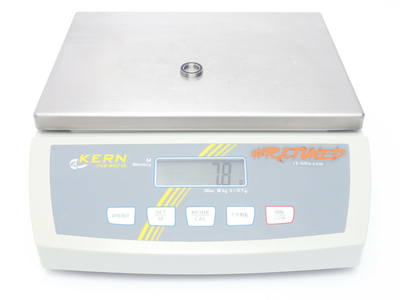

Weight weighed: 7.8g
Scope of delivery: 1x Newmen ball bearing BB CB 17x26x5 CN LLH for Road hub body
