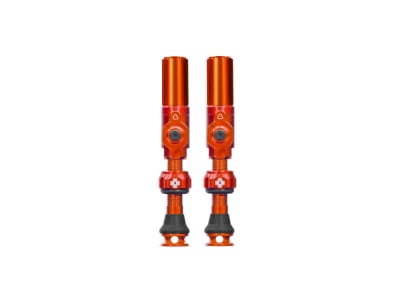

MUC-OFF Tubeless Valve Set Big Bore Hybrid | orange
What can you improve on tubeless valves? Quite a lot!
Muc-Off is not just resting on pretty anodized colors, no, there are fundamental technical changes compared to classic valves. A decisive point with tubeless valves is the air passage and thus the speed at which the air fills the tire, especially when no powerful compressor is at hand. Another is the weak point of the valve insert, which either sticks together and is difficult to open or is clogged with sealant and hardly allows any flow at all.
In the Big Bore valves, the traditional valve insert has been dispensed with. As a result, the incoming air has maximum efficiency and, in the hybrid version, delivers up to 254% more flow than conventional Presta valve inserts. But how do you open and close the valve? The ball valve principle. In other words, "open" and "closed" are separated by a ball, which is moved into its respective position with a small integrated lever.
The Big Bore tubeless valves come with a tire insert airflow system. Four-way tire inserts, which are milled into the base of the valve stem, make the valves compatible with most tubeless tire inserts. Tubeless sealant and air can flow freely through the holes. They are made from aircraft aluminum so they are lighter and stronger than before! The valve caps and knurled nuts are also anodized to match the valves and decorated with Muc-Off logos. To adapt the valves to a wide variety of rims, you will receive various rubber feet to optimize the fit.
NOTE: A Schrader pump head is required. If you use a Presta pump, then the Big Bore Lite valves are the right ones.
Features:
- CNC machined from 7075 aircraft aluminum
- Coreless ball valve system, opening and closing via integrated lever
- Stainless steel ball valve with seals and O-rings
- maximum flow efficiency offers up to 254% higher flow than classic Presta valves
- Universal valve head is compatible with most screw-on and plug-in pumps
- maintenance-friendly design with wrench flats on head, lever and body
- 4-way air flow outlets, which are compatible with most tubeless inserts
- supplied with different rubber bases (for different rim types)
- available in different colors and lengths
technical data:
Material: 7075 aluminum, plastic, rubber
Valve type: Hybrid (fit: Schrader pump | Presta rim)
Length: 30, 35 or 45 mm
Valve hole in rim: max. 8 mm diameter
Color: orange
Weight according to manufacturer: n/a
Weight self-weighed: n.a.
Scope of delivery:
1x pair of MUC-OFF valve stems
1x pair of MUC-OFF ball valve bodies
1x pair of knurled nuts with rubber rings
1x pair of valve caps
3x pair of rubber fitting pieces
