LUPINE Lamp Head SL Nano AF | 5,0 Ah SmartCore | StVZO

%

Description
PDF (1)

LUPINE Headlight SL Nano AF | 5.0 Ah SmartCore | StVZO

Minimum size, maximum performance - this is the best way to describe Lupine's smallest lamp with StVZO approval. Glare-free 700 lumen low beam, switchable high beam and Lupine's proven lens technology make it the first choice for your bike tours in the dark season. Its automatic daytime running light increases your safety on the road.

Simple. Guaranteed.
Mounting the light in front of the stem is extremely easy thanks to the sturdy, single-sided aluminum bracket. Once installed, it receives its power from the battery. The SL Nano AF Nano also has genuine StVZO approval.

As small and robust as possible
The SL F Nano is incomparable. It owes its unique appearance not only to the striking daytime running light, but above all to the development work of the Lupine engineers. They created the smallest and lightest lamp in its class. Its extremely robust and high-quality aluminum body reliably protects it from shocks, dust and water and meets the IP67 standard with flying colors.

Sensor-controlled daytime running light
The stereo sensor system scans your ambient light and switches your SL AF from daytime running light to low beam in good time. The daytime running light of the StVZO models is continuously supported by the main headlight.

High beam
This is not just a more powerful low beam. When switching to high beam, the entire light pattern changes. This means that the area above the glare limit is visible from afar. Even faster journeys and detours on the trail are no longer a problem. For safety and improved comfort, the light can be switched back and forth by remote control.
Please use the high beam wisely and turn off in oncoming traffic.

LUPINE SmartCore 5.0 Ah Li-Ion battery
The rechargeable batteries from Lupine are in no way inferior to their indestructible lights. They also contain the finest electronics. Thanks to the microprocessor-controlled charging process with balance function, the cells are gently and fully recharged at all times. This guarantees you an optimum light duration and a long battery life.
With the SmartCore version, you can check the current charge status of the battery at any time by briefly pressing the control panel. The battery can be attached using the Velcro straps supplied, which guarantee a secure hold thanks to their non-slip coating.

High beam 1200 lumen / 14 W - 2:30 h
Low beam 700 lumen / 8 W - 4:20 h
Daytime running light / 2 W - 11:40 h

Technical data:

Lamp head material: CNC-milled, aluminium 6061-T6, shot-peen, hard-anodized
Light source: 2x Osram Compact PL LED
Luminosity: 1200 lumen / 14 W (high beam), 700 lumen / 8W (low beam)
Range: up to 250 m
Protection class: IP 67 (waterproof), IK 09 (impact resistant)
Battery: 5.0 Ah Li-Ion SmartCore
Charging time: 2h 35 min
StVZO approval: yes, K license plate
Bracket: Handlebar bracket with Ø 31.8 mm
Dimensions (ØxL): 41 x 30 mm
Color: black

Weight according to manufacturer: 52g (lamp head only), 190g (battery)
Weight when weighed: 289g (ready to ride)

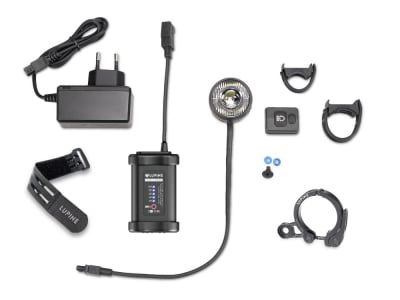

Scope of delivery:

1x Lupine lamp head SL Nano AF
1x SL Nano handlebar mount with quick release for Ø 31.8 mm
1x LUPINE SmartCore 5.0 Ah Li-Ion battery
1x Velcro strap for battery | 21 cm
1x Velcro strap for battery | 30 cm
1x Bluetooth remote control
1x Handlebar mount remote control standard for Ø 22 mm
1x Handlebar holder remote control XL for Ø 32 mm
1x Weasel charger

Please note
The bike with attachments shown in some of the pictures is for illustrative purposes only and is not included in the scope of delivery.

GTIN:

4260689656080

MPN:

7550X
