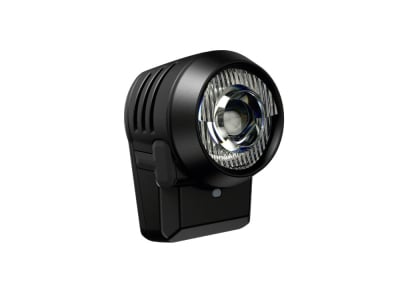

LUPINE headlight SL Mono | StVZO
It's here, Lupine's first lamp with an integrated battery and StVZO approval for road traffic. Economical daytime running lights, glare-free 700 lumen low beam and the proven lens technology make them the first choice for your bike tours in the dark season. Due to its compact design, it always finds a place in the backpack and is quickly ready for use when needed.
Easy. Guaranteed.

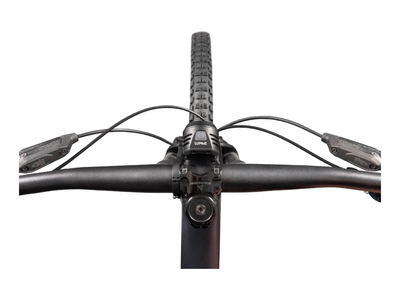

The installation of the light in front of the stem is extremely easy thanks to the stable aluminum bracket on one side. There it sits ideally in the middle and creates the best illumination. In addition, the SL Mono has real approval in terms of the StVZO.
As small and robust as possible
The SL Mono is incomparable. Their unique appearance makes them stand out from the crowd. An extremely robust and high-quality aluminum body reliably protects it from impact, dust and water and meets the IP68 and IK 09 standards with flying colors. Of course, this also guarantees a long service life.
Convincing light output
The sensors scan your ambient light and switch the light from daytime running lights to low beams in good time. As a result, you always drive with the optimum light output, save energy and are not overlooked. The high-quality lens that is typical for Lupine creates a homogeneous light image and helps you to recognize obstacles in good time.
Integrated battery
The integrated 3.3 Ah Li-Po battery supplies the SL Mono with power for up to 16 hours. It is conveniently charged via a USB port. Even if the battery is installed directly in the housing, you can change it yourself with a little manual skill. In contrast to many other manufacturers, Lupine acts very sustainably and avoids a lot of electronic waste.
Light output - burn time:
Low beam 700 lumens / 8 W - 2:00 h
Low beam 350 lumens / 4 W - 4:30 h
Daytime running light 150 lumens / 1.5 W - 4:00 p.m
Technical specifications:
Lamp head material: CNC-machined, aluminum 6061-T6, shot-peen, hard-anodized
Dimensions (LxWxH): 45 x 45 x 67mm
Illuminant: Osram Compact PL LED
Luminosity: 150 lumens (daytime running lights), 350 lumens (low beam, dimmed) 700 lumens (low beam)
Range: up to 190 m
Protection class: IP 68 (waterproof), IK 09 (impact resistance)
Battery: 3.3 Ah (12.2 Wh) Li-Po battery 3.7 V, integrated (changeable with tools)
Approval StVZO: yes, K license plate
Mount: SL Mono handlebar mount for 31.8 mm or 35.0 mm handlebar diameter
Color: Black
Weight according to the manufacturer: 115g (lamp head only)
Weight weighed: 167g (including bracket)
Scope of delivery:
1x LUPINE headlight SL Mono | StVZO incl. battery
1x SL Mono quick release handlebar holder for 31.8 mm or 35.0 mm handlebar diameter
1x USB charging cable
Note: The partially illustrated bike with attachments is for illustration purposes only and is not included in the scope of delivery.
