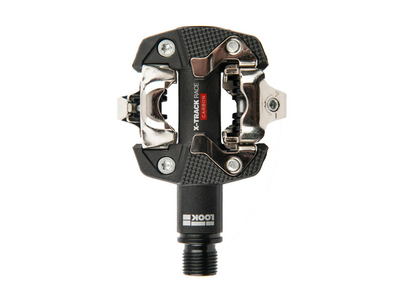

LOOK Pedals X-Track Race Carbon MTB 2023
The newly developed LOOK X-Track pedals impress with their outstanding ratio of contact area to weight. The shoe sole rests on an area of 515 mm² on the 60 millimeter wide pedals, which ensures optimal grip on the pedal and prevents unwanted play. This significantly reduces power loss when pedaling, especially during hard acceleration and sprints. The large contact area also makes it easier to get into the pedal, as the area offers good guidance even when it is clicked out.
The two-sided click mechanism of the X-Track pedals works even in the most adverse conditions. The chromoly steel platform is constructed in such a way that it has very good self-cleaning properties in muddy conditions. The release hardness of the pedals can be easily adjusted between 6 and 10 Newton meters for individual needs using a hexagon socket screw. Due to the compact design of the pedals, they are extremely robust and can easily withstand occasional bounces. Despite its robustness and large contact area, the weight remains relatively low thanks to the carbon body. The click mechanism is compatible with all Shimano SPD (MTB) cleats.
Technical specifications:
Area of intended use : MTB, cyclocross, gravel bike
Material pedal axle: chromoly steel
Material pedal body: carbon, injection process
Contact patch material: Chromoly steel
Size contact area: 515 mm²
Bearings: sealed cartridge bearings
Freedom of movement: +/- 6°
Release hardness: 6 - 14 Nm continuously adjustable
Release angle: not specified
Q-factor: adjustable via pedal plates by approx. 2 mm
Compatibility: Shimano SPD sole standard
Weight limit: not specified
Colours: black
Weights (manufacturer information): 348g (only pedals), 444g (including cleats)
Scope of delivery: 1x pair of LOOK X-Track Race carbon pedals, shoe plates, fastening screws
