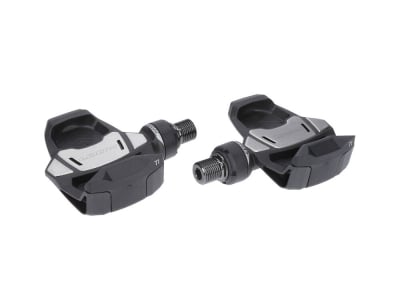

LOOK KéO Blade Ceramic Ti pedals
Equipped with smooth-running ceramic bearings and elegant titanium axles, the KéO Ceramic Ti pedal is the flagship among the Look pedals. Weighing just 95 grams per pedal, it combines extreme lightness with all the cutting-edge technologies of the French brand. In the 4th generation, the KéO Blade has become even more comfortable, more aerodynamic and easier to adjust. The proven click mechanism with carbon leaf spring has remained unchanged. This enables a more defined exit from the pedal and a significantly faster release of the foot at the end of the exit compared to conventional clipless pedals. To meet the requirements of all riders, the carbon blades are available with 4 different release strengths from 8 Nm to 20 Nm release strength. The 12 Nm version will suit most riders, while the 16 Nm and 20 Nm versions are suitable for powerful riders and sprinters looking for an extra firm hold on the pedal.
The perfect integration of the carbon leaf spring makes the Blade the most aerodynamic pedal on the market. 2 channels on the sides additionally support the optimum air flow. The double seals and extensive material tests on the axles, which far exceed the applicable standards, guarantee a long service life.
Easier entry
An optimized weight balance facilitates the click-in movement by 60% compared to the previous version. This gives you more confidence in hitting the pedal in hectic situations.
More robust and durable
With a new axle design, revised seals and a new, more durable water-repellent bearing grease, the KéO Blade pedals have become significantly more robust. A new, reinforced pedal body design also ensures a 200% increase in robustness and greater resistance in the event of accidental contact with the pedals and in the event of a fall.
Increased comfort
The revised platform with 705 mm² contact surface reduces the risk of pressure peaks on the foot, regardless of the stiffness of the shoes. The support surface, which has now been extended to 3 stainless steel plates, also ensures greater stability and reduces unwanted movements and lateral tilting when pedaling.
Simple blade change
Thanks to the new design, the blade spring can be changed within 30 seconds without special tools to change the release hardness.
Updated aero profile
The new design not only looks fast, it also saves another 2% air resistance compared to the previous design.
Technical data:
Area of application: road bike/triathlon/time trial
Pedal axle material: Titanium
Pedal body material: Carbon
Contact surface material: stainless steel
Contact surface size: 705 mm²
Bearing: 1x ceramic ball bearing, 1x needle bearing
Freedom of movement: depending on cleats 0°, 4.5° (included) or 9°
Release force: 16 Nm
Release angle: n.a.
Q-factor: 53 mm
Compatibility: Look/SPD-SL sole standard
Weight limit: 100 kg
Colors: black
Weight according to manufacturer: 190g (260g including cleats)
Weight self-weighed: 190g (1x pair of pedals), 64g (1x pair of cleats including screws)
Scope of delivery:
- 1 pair of LOOK KéO Blade Ceramic Ti pedals
- 1 pair of cleats + screws
