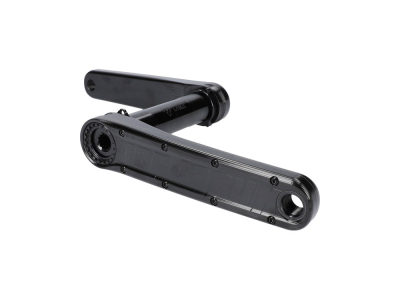

GARBARUK Enduro Crankset | black 165 mm 28,99 mm (SRAM DUB)

%

Description

GARBARUK Enduro crankset | black

After the cranksets for Road, Gravel and Cross Country applications, now comes the third crank. The Enduro crankset.
The name says it all. The crank was developed to do a stable and safe job even under the toughest conditions. To this end, it has been reinforced with additional material at the relevant points, but also remains true to its hollow two-piece construction, which is additionally bolted with eight bolts per crank arm.
The low weight competes with many carbon cranks and with the large selection of anodized colors, you can let off steam not only on the trail. In addition to the colors of the crank arms, there are other customization options, such as Color tone of chainring, lockrings and bolts.

To install the crankset, all you need is a 12 mm, a 2 mm Allen key and a Shimano Hollowtech II tool (TL-FC34 bottom bracket assembly SM-BB93). Garbaruk recommends a torque of 50 Nm for mounting the crank arms and a torque of 35 Nm for mounting the chainring. The crank arms can be easily removed using the integrated crank arm puller and a standard bottom bracket wrench for cartridge bearings.

Note: The spacers are only required and supplied for the version with 30 mm crankshaft.

Technical data:

Area of application: MTB - Trail, Enduro
Material crank arms: 7075-T651 aluminum, CNC-milled
Shaft material: 7075-T651 aluminum
Spider material: -
Crankshaft material: Aluminum
Crankshaft diameter: 28.99 mm or 30 mm
Crankshaft length: 136.5 mm
Crank lengths: 165 mm, 170 mm, 175 mm
Chainring mount: Garbaruk Direct Mount
Chainring: -
Chainring attachment: Lockring (TL-FC34 tool mount, 35 Nm recommended)
Chainline: 52 mm
Q-factor: 170 mm
Bottom bracket compatibility: 28.99 mm or 30 mm
Chain compatibility: depending on chainring
max. rider weight: n.a.
Finish: anodized
Color: black

Weight according to manufacturer: 461g (without chainring)
Weight as weighed: 485g (170 mm, without chainring)

Scope of delivery:
1x GARBARUK Enduro crank | black, with pedal washers, chainring lockring, preload ring
2x lockring black
1x crankshaft
4x spacers (only for the 30 mm version)
