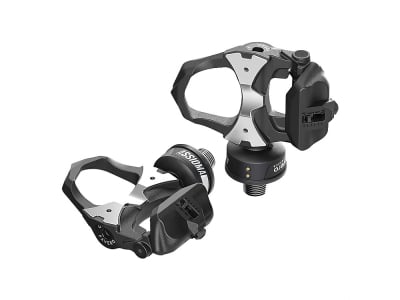

FAVERO Power Meter Pedals Assioma DUO | dual-sensing measurement | Look Keo

New

Description
PDF (1)

FAVERO Power Meter Pedals Assioma DUO | double-sided measurement | Look Keo

The Assioma power meter pedals stand for maximum measurement accuracy and uncompromising reliability. Developed and manufactured in Italy, they help you to reach your full potential on the bike. They can be fitted in just a few seconds, just as easily as a conventional pedal. Thanks to automatic calibration and instant connection via Bluetooth or ANT+, the Assioma are ready to use immediately and ensure a smooth riding experience.

Powermeter pedals that set new standards
The Assioma pedals are the only power meter pedals in which the electronics, strain gauges and rechargeable battery are fully protected inside the axle. This ensures exceptional durability and consistent performance. As there are no electrical contacts as with exchangeable batteries, voltage-related dropouts are a thing of the past. As there are no power connections or battery compartments, there is no risk of water ingress. Thanks to IP67 certification, consistently high reliability is guaranteed even under the most extreme conditions.

Efficiency, control and maximum power transmission
The Assioma are 100% Look Keo compatible and offer precise click-in and click-out as well as a wide, adjustable release range. With a low height of just 10.5 millimetres for optimum power transmission and a standard Q-factor of 54 millimetres, the Assioma PRO RS provide a direct ride feel and precise cornering. The pedal bodies are made of carbon fiber-reinforced technopolymer, combined with a wide stainless steel contact surface and high-quality needle bearings. This design ensures maximum stability and durability.

Plausible data instead of guesswork
In addition to power and cadence, the system provides numerous advanced data such as power phase, rider position, TE, PS, left/right balance and more. This gives you in-depth insights into your pedalling motion, optimizes every movement and provides reliable, reproducible measured values in all weather conditions.

Outstanding measurement accuracy
The IAV Power System uses a three-axis gyro sensor to precisely record every pedal movement. The result: ±1 % measuring accuracy and constant power data - every time you ride and in all conditions. Thanks to IAV Power technology, the Assioma PRO RS measures the actual power with outstanding accuracy, even during explosive sprints, very high cadence or when using oval chainrings.

Always ready for use
Whether at home or on the road, the Assioma PRO RS can be charged anytime and anywhere, even with a standard power bank. Both pedals can be charged simultaneously using the magnetic charging system. A single charge lasts for over 50 hours of riding time.

Technical data

Area of application: road bike, triathlon, gravel
Material pedal axle: stainless steel
Pedal body material: carbon-reinforced composite material
Shoe plate material: thermoplastic
Bike computer compatibility: Garmin Edge bike computers and Garmin smartwatches with the latest software version as well as all common third-party bike computers that can connect sensors via ANT+ or Bluetooth
Crank compatibility: cranks with 9/16" pedal thread, also compatible with oval chainrings
Power supply: integrated lithium-ion battery
Runtime: up to 50 hours
Charging connection: magnetic charging clamp with USB micro-B connection
Measuring location: axle
Measurement: on both sides
Measuring accuracy: ±1 % (also with oval chainrings)
min.-max. Watt power: 0 - 3000 W
Left-right balance: 0 - 100%
min.-max. cadence: 30 - 190 rpm
min/max. temperature range: -10/+60 °C
Connectivity: ANT+ or Bluetooth
Pedal body / cleats: Look Keo compatible
Freedom of movement: varies depending on cleat (6° included)
Release hardness: adjustable
Q-factor: 54 mm
Stand height: 10.5 mm
Maximum rider weight: 120 kg
Water protection class: IP67
App: Assioma app(Google Play Store, Apple App Store)
Pedal body color: black
Axle color: silver

Weight according to manufacturer: 152g (per pedal)
Weight self-weighed: 300g (pedals), 80g (pedal plates including mounting material)

Scope of delivery:

1x pedal left with power meter unit
1x right pedal with power meter unit
1x pair of cleats 6° incl. mounting material
1x charger including socket adapter (EU, US, UK, AU)
2x 2m USB Micro-B charging cable
2x magnetic charging clamp
1x mains plug
3x mains plug adapter
4x washers (pedal washer)
1x Allen key
1x instruction manual

Note: A compatible bike computer is not included in the scope of delivery!

GTIN:

705632189016

MPN:

772-02
