EASTON EC70 AX Flare Gravel handlebars | 31.8 mm
The EC70 AX is the spearhead among the Easton gravel bike handlebars. Thanks to its carbon construction, it offers very high stiffness for off-road use despite its low weight of only 220 grams. With the proven maximum contact shape (MCD shape) of the drops, the handlebars sit perfectly in the lower link. For more control on loose terrain, the lower link is angled outwards by 16 degrees. After intensive testing, this angle proved to be the best compromise between a wide handlebar width in the lower bar and good accessibility of the brake levers in the upper and lower bars.
Technical data:
Area of application: Gravel, road bike, cyclocross
Material: Carbon
Top link shape: round
Lower link shape: compact
Cable routing: external cable ducts
Handlebar clamp Ø: 31.8 mm
Handlebar width (center - center): 400 mm, 420 mm, 440 mm, 460 mm (+68 mm at each drop)
Reach: 80 mm
Drop: 120 mm
Flare: 16°
Max. system weight (rider, bike and luggage): n/a
Tightening torque max: n/a
Color: Carbon black
Finish: UD-matt

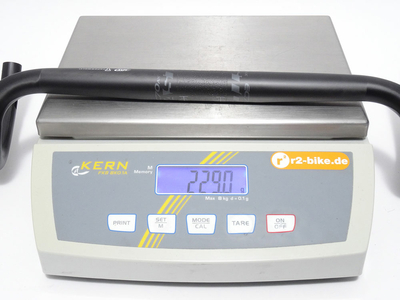

Weight: 220g (420 mm)
Scope of delivery: 1x EASTON EC70 AX Flare Gravel handlebar | 31.8 mm
