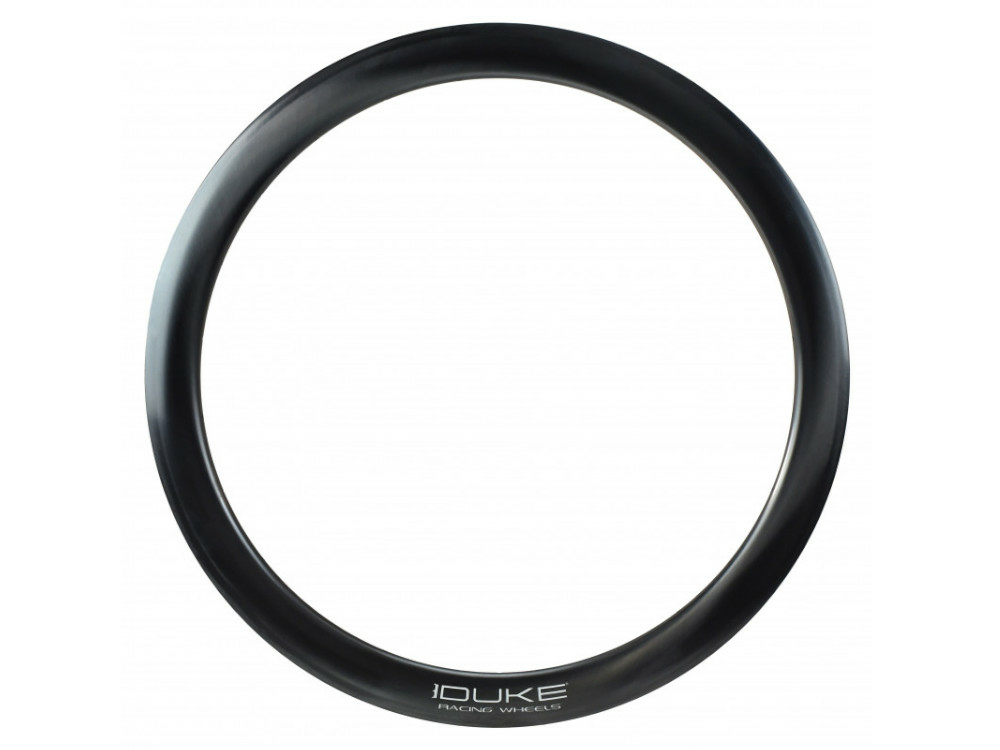

DUKE rim 28" Baccara Ultra 48 SLR2 Disc UD carbon symmetric
High speeds on slightly hilly routes are exactly what this medium-high rim is made for. Its convincing aerodynamic properties, paired with a weight of less than 400g, are unrivalled. Nevertheless, no savings were made on safety, after all it is approved for a system weight of 95 kg.
How did the French do this? They took a closer look at the individual elements of the rim and looked for optimization options. In particular, a new resin was used. This not only made it possible to slim down, but also to increase impact resistance at the same time. Thanks to the SLS2 production process, post-processing or painting is not necessary here. The use of highly modular carbon fibers also improves the inherent damping, which in turn has a positive effect on driving comfort. The modified structure enables unrestricted tubeless use and brings measurable aerodynamic advantages.
In the Ultra version, material was also saved in non-critical areas in order to save further weight without sacrificing functionality.
2 year warranty and lifetime crash replacement on UD carbon rims
Duke selects the materials used very carefully in order to be able to offer you the best possible product. Therefore, the quality standards for all products, subcontractors and partners are very strict. Duke guarantees for a period of two years that the rims offered will not have any hidden defects. However, improper assembly or use of the products will void the warranty.
In the event of an accident or serious fall, violent impacts can damage the rim and make it impossible to use. Therefore, Duke offers a lifetime crash replacement for its UD carbon rims. In exchange, you will receive a discount of 50% on the rim you have purchased.
We would be happy to make you an offer for a complete custom wheelset with hubs and spokes of your choice. Please send us an email to [email protected] !
Technical specifications:
intended use : road bike, gravel
Materials: carbon
Rim Type: Clincher (clincher and folding)
Brake type: only for disc brake
ETRTO: 622x21
EARTH: 547mm
Inner width: 21.0 mm
Outer Width: 27.6mm
Rim Height: 48mm
Offset: no
Number of holes: 24 or 28 holes
tubeless capable: yes
ASTM classification: n/a
recommended tire width: 25 - 53 mm
maximum tire pressure: 7.5 bar (28 mm)
Maximum system weight: 95 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: 1100 - 1200 N
Features: -
Valve hole bore: 6 mm (SV)
Finish: UD carbon, satin finish
Color: Black
Weight according to the manufacturer: 395g

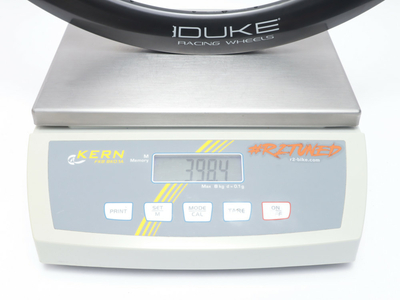

Weight weighed: 398g
Scope of delivery: 1x DUKE rim 28" Baccara Ultra 48 SLR2 Disc UD carbon symmetric
