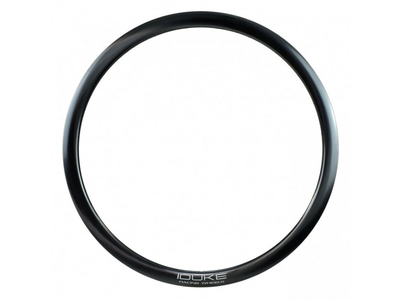

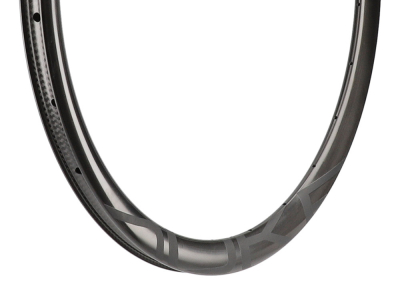

DUKE rim 28" Baccara Ultra 36 SLR2 Disc UD carbon asymmetric
Summiteers will be delighted with this lightweight rim. Duke broke all limits with her. A weight of less than 300g with a rim height of 36 mm is unrivaled. Nevertheless, no savings were made on safety, after all it is approved for a system weight of 95 kg.
How did the French do this? They took a closer look at the individual elements of the rim and looked for optimization options. In particular, a new resin was used. This not only made it possible to slim down, but also to increase impact resistance at the same time. Thanks to the SLS2 production process, post-processing or painting is not necessary here. The use of highly modular carbon fibers also improves the inherent damping, which in turn has a positive effect on driving comfort. The modified structure enables unrestricted tubeless use and brings measurable aerodynamic advantages.
In the Ultra version, material was also saved in non-critical areas in order to save further weight without sacrificing functionality.
The rims are provided with an asymmetrical rim profile, which allows a more even angle of the spokes. This optimization of the spoke angle brings with it a multitude of advantages. The tension on both sides can be better balanced, which is beneficial to the durability of the spokes and the entire wheel. The normally directional lateral stiffness is also adjusted so that the impeller becomes more stable.
3 year guarantee on carbon rims
Duke selects the materials used very carefully in order to be able to offer you the best possible product. Therefore, the quality standards for all products, subcontractors and partners are very strict. Duke guarantees for a period of three years that the rims offered will not have any hidden defects. However, improper assembly or use of the products will void the warranty.
Furthermore, Duke offers a crash replacement for its carbon rims. In the event of an accident or serious fall, violent impacts can damage the rim and make it impossible to use. With this offer, Duke offers you a service with which you can replace your rim within two years from the date of purchase at special conditions: you receive a 30% discount on the price of the rim you have purchased.
We would be happy to make you an offer for a complete custom wheelset with hubs and spokes of your choice. Please send us an email to [email protected] !
intended use : road bike, gravel
Rim Type: Clincher (clincher and folding)
Brake type: only for disc brake
Inner width: 21.0 mm
Outer Width: 27.6mm
Rim Height: 36mm
Number of holes: 24 or 28 holes
tubeless capable: yes
ASTM classification: n/a
recommended tire width: 25 - 53 mm
maximum tire pressure: 7.5 bar (28 mm)
Maximum system weight: 95 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: 1100 - 1200 N
Features: asymmetrical rims for optimal spoke tension
Valve hole bore: 6 mm (SV)
Finish: UD carbon, satin finish
Weight according to the manufacturer: 295g
Weight weighed: 298g
Scope of delivery: 1x DUKE rim 28" Baccara Ultra 36 SLR2 Disc UD carbon asymmetric
