Description
DT SWISS rear wheel 29 "H 1900 Spline 30 mm Hybrid | E-Bike | 12x148 mm BOOST thru axle | 6-hole | Freewheel Shimano Micro Spline
Since the introduction of the first generation of DT Swiss Hybrid wheels, e-bikes, their users and their range of uses have changed significantly. Not only have the average drive forces increased significantly, more powerful batteries have almost doubled the average tour length and a rapidly growing proportion of riders regularly use the E-MTB on technically demanding single trails. Even in uncompromising e-enduro racing, modern e-bikes and their components have to prove themselves in the meantime. With the current hybrid line, the Swiss at DT-Swiss have taken these developments into account and, with their 27 years of experience, have adapted the e-bike-specific wheel series to the increased loads. The H 1900 wheels offer you an inexpensive introduction to the DT Swiss Hybrid wheel sets without having to compromise on durability or reliability.
DT Swiss 370 hubs
In order to cope with the higher driving forces on the E-MTB, the DT Swiss 370 hub has a cassette holder made of specially hardened steel. Your Ratchet LN pulley system distributes the combined power of driver and engine evenly and without load peaks over 18 teeth per wheel revolution.
Robust rims
The inserted (sleeve-joint process) aluminum rims with their large inner width of 30 millimeters wide tires offer very good support at low air pressures. In order to be equipped for a maximum system weight of 150 kg (driver, luggage and bike), the rims have been reinforced at the crucial points. In particular, the inner area around the spoke holes, which is crucial for power transmission, has been given a greater wall thickness. The rim profile is of course designed for tubeless use and comes with tubeless tape and a matching tubeless valve.
DT Swiss Hybrid 1 spoke
The DT Swiss Hybrid 1 spokes were specially developed for use on E-MTBs. The Straightpull spokes have been reinforced, especially at the spoke heads. With a maximum tensile force that is 30% higher than that of conventional MTB spokes, they can better absorb the higher drive and braking torques and thus ensure permanent lateral and torsional rigidity of the wheels.
Pro Lock technology
In the Pro Lock process, a patented two-component adhesive is injected into the nipple thread and enables extremely durable impellers to be built. As soon as the nipples are screwed in, the adhesive is activated and cures completely after approx. 6 - 7 hours at room temperature. Repeated re-centering is still possible without any problems, whereby the adhesive force decreases slightly with each re-centering.
Technical specifications:
intended use : e-bike
Impeller size: 29 "(ETRTO: 30-622)
Rim type: Clincher (wire and folding tires)
Brake type: only for disc brake
Brake disc mount: 6-hole
Material rim: aluminum

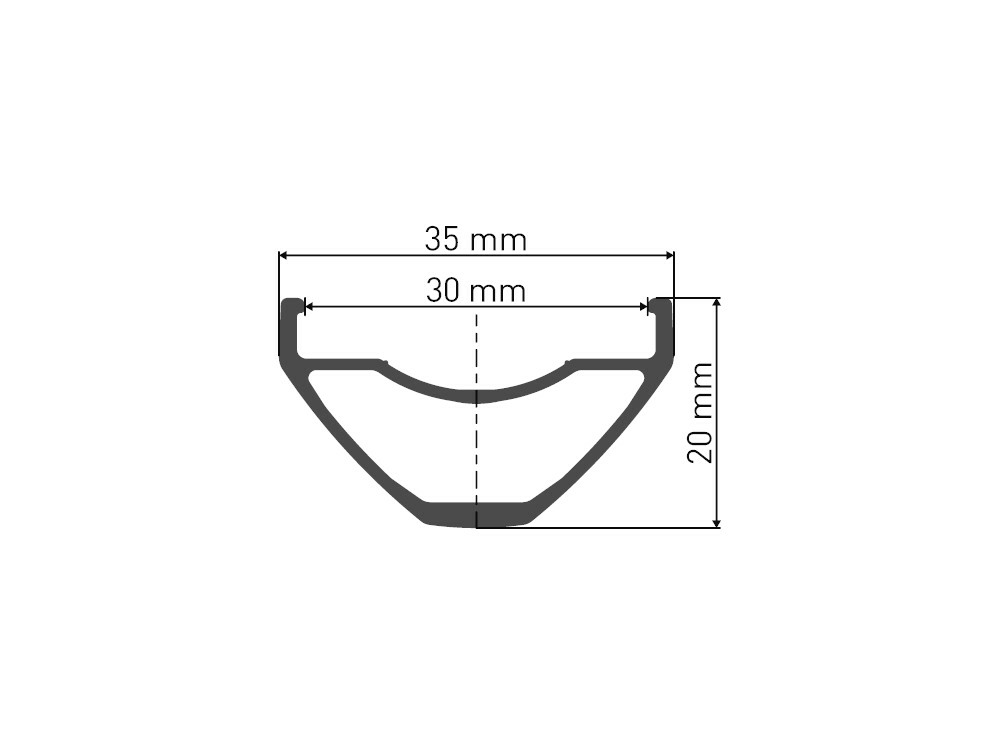

Inner width: 30 mm
External width: 35 mm
Rim height: 20 mm
Number of holes: 28 holes
axle type : 12x148 mm thru-axle BOOST
bearing : 4x industrial warehouse
Spokes: DT Swiss Hybrid 1 | Straight pull
Freewheel compatibility: 12-speed Shimano Micro Spline
Freewheel type: 2 tooth lock washers, 18 grids
tubeless capable: yes
Recommended tire width: n / a
maximum system weight: 150 kg (driver, bike, clothing and possibly luggage)
Color: black, logos gray
Weight according to the manufacturer: 1174g
Weight weighed: 1194g (including tubeless tape and valve)
Scope of delivery:
1x rear wheel
1x tubeless valve 32 mm
1x tubeless tape 32 mm
