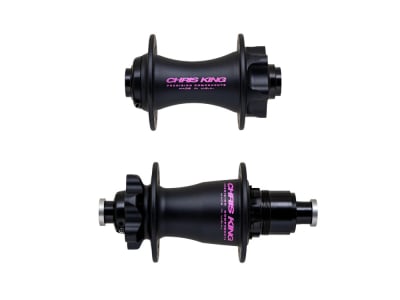

CHRIS KING Hub Set MTB Gen 4 Ceramic 6-Hole | Boost | Freewheel SRAM XD | 28 Hole | TwoTone - black / pink
CHRIS KING hubs have a certain myth attached to them. They have been on the market almost unchanged for years and yet they are not old hat. Thanks to the proven technical inner workings, constant further development in detail and unmistakable appearance, they have developed into a true cult object.
The unmistakable sound of the freewheel is the trademark of the rear hubs. Chris King himself calls it the "Angry Bee Sound", which is generated by the 72 grid points of the stainless steel toothed pulley. Thanks to this 3-part RingDrive system, every pedal stroke is immediately converted into propulsion without much idle travel.
The large hub flange of the hubs allows shorter spokes to be used in wheel construction, which not only saves weight but also makes for a very stable and durable wheel.
At the heart of the hub are the ball bearings. These are also developed and produced directly at Chris King. This means they can be fully adapted to the specific loads and forces. Thanks to the multiple seals, the ingress of water or dirt is virtually impossible. Before installation, each bearing is checked by hand for any quality defects and sorted out if necessary. The ceramic bearings installed here are the highest evolutionary stage. Their smooth running is phenomenal and their durability unrivaled, and they even save a little weight. Adjusting the bearing play is very simple and can also be carried out with the bearings installed. With the help of the Chris King hub tool set, which can be purchased as an option, replacing the bearings and maintaining the hub is child's play.
These unique features are still part of the hubs in the 4th generation, but the inner workings have been fundamentally improved in terms of maintenance and servicing. Thanks to universal and versatile axle components, conversion to other hub or freehub standards has become much more cost-effective. The use of common bearing sizes guarantees better compatibility with each other. The disassembly and assembly of the hub has also been significantly simplified and the preload can be adjusted more precisely.
Chris King has confidence in its products. They show this by giving a lifetime guarantee on their hubs. You must register your hub on their website after purchase.
If you would like this hub set in a different color, please contact our service team at [email protected].
Technical data front hub:
Application: MTB
Material: Aluminum, steel
Axle standard: 15x110 mm thru axle Boost
Number of holes: 28 holes
Brake rotor mount: 6-hole
Bearing: 2x ceramic industrial ball bearings
Spoke type: Standard bent spokes (J-bend)
Spoke tension: n/a A.
maximum system weight: n/a
Color: black / pink (TwoTone)
Weight according to manufacturer: n/a
Weight self-weighed: 184g
Technical data rear hub:
Application: MTB
Hub material: Aluminum
Material freehub body: Aluminum
Axle standard: 12x148 mm thru axle Boost
Number of holes: 28 hole
Brake rotor mount: 6-hole
Freehub compatibility: 11-, 12-speed SRAM XD
Freehub type: Stainless steel sprocket, 72 ratchets
Bearing: 4x ceramic industrial ball bearings
Spoke type: Standard spokes (J-bend)
max. permissible spoke tension: n/a
maximum rider weight: n/a
color: black / pink (TwoTone)
Weight according to manufacturer: n/a
Weight self-weighed: 307g
Scope of delivery:
1x CHRIS KING front hub MTB Gen 4 ceramic 6-hole | 15x110 mm Boost | 28 hole | TwoTone - black / pink
1x CHRIS KING rear hub MTB Gen 4 ceramic 6-hole | 12x148 mm Boost | freehub SRAM XD | 28 hole | TwoTone - black / pink
