CARBON-TI Thru Axle X-Lock EVO 12x1,5 X-E-Thru | 168,7 mm

CARBON-TI thru-axle X-Lock EVO 12x1.5 XE-Thru | 168.7 mm

CARBON-TIs super-light X-Lock EVO thru axles are elaborately manufactured from one piece of 7075 aluminum. Thanks to the optimized head and multiple butting, they are extremely light and have excellent rigidity values. Operation is child's play with a 6 mm Allen key. You can choose between different colors so that it fits your bike optically.

Made in Italy.

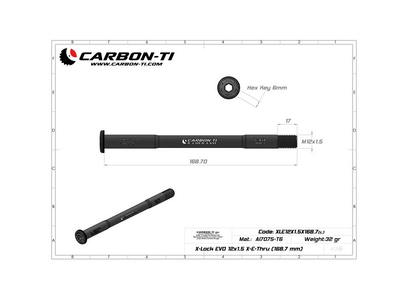

Technical specifications:

Material: aluminum 7075 T6
Hub standard: 12x142 mm
Compatibility: Scott Addict (2020-2021)
Axle length: 168.7 mm
Axle diameter: 12 mm
Thread pitch: M12x1.5
Thread length: 17 mm
Contact surface, not thread side: flat
Tool holder: 6 mm hexagon socket
max.permissible torque: 10 Nm
Color: red, gold, blue, silver, black, matt black, green and acid green

Weight according to the manufacturer: 31.5g

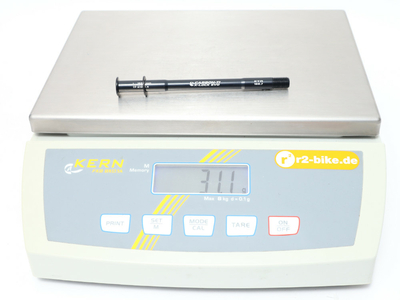

Weight weighed: 31.1g


Scope of delivery: 1x CARBON-TI thru-axle X-Lock EVO 12x1.5 XE-Thru | 168.7 mm
