Description

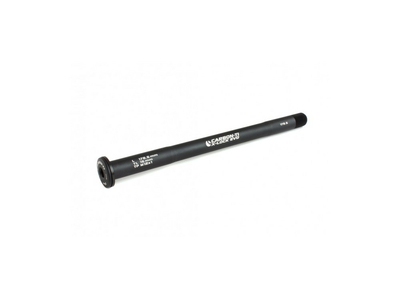

CARBON-TI thru axle X-Lock EVO 12x1.0 | 174mm
CARBON-TI's super light X-Lock EVO thru axles are elaborately manufactured from a single piece of 7075 aluminum. Thanks to the optimized head and multiple butting, they are extremely light and have excellent stiffness values. Operation is child's play with a 6 mm Allen key. You can choose between different colors so that it also fits your bike visually.
Made in Italy.
Technical specifications:
Material: Aluminum 7075 T6
Hub Standard: 12x148mm Boost
Compatibility: (UDH interface) - 2022 Trek Supercaliber and Procaliber
Axle length: 174mm
Axle diameter: 12 mm
Thread pitch: M12x1.0
Thread Length: 15mm
Contact surface, not thread side: flat
Tool holder: 6 mm Allen key
max. permissible torque: 10 Nm
Colour: red, gold, blue, silver, black, matt black, green and acid green
Weight according to the manufacturer: 31g
Weight weighed: 32g
Scope of delivery: 1x CARBON-TI thru axle X-Lock EVO 12x1.0 | 174mm
