CARBON-TI Rear Hub X-Hub Road SP Rear XDR for Quick Release | Freehub SRAM XDR

Item number:
Product weight: 160 g
Brands: Carbon Ti

old price: 297,50 €
from Special price 195,00 €
MSRP: 370,00 €
You save 47,3%, that is 175,00 €

including 19% VAT. excl. Shipping costs / shipping time info


There are variations of this item. Please select the variation you wish.

available from stock
Credit Card, PayPal, Amazon...
Secure Transaction
Refund within 100 Days
Free Return

Product details | Availability


CARBON-TI rear hub X-Hub Road SP Rear XDR for quick release | Freehub SRAM XDR

Products from Carbon-Ti stand for lightweight construction without carelessness and compromises in rigidity. After all, all parts are driven and tested in the World Cup. This guarantees the end user high quality and reliability. All Carbon-Ti hubs are developed and produced in Italy.

The hub body of the X-Hub Road SP rear hub is CNC-milled and revolves around a multi-butted aluminum axle. With a diameter of 17 mm, this brings a decent stiffness to the hub. Four high-quality, double-sealed ball bearings are installed, which ensure a permanently silky smooth run. The axle play can easily be adjusted by hand from the outside. The new pre-load adjustment ring is now easier to use.
The freewheel engages via four pawls, each with three teeth, in a 56-tooth titanium ring in order to be able to withstand the acceleration of performance-oriented drivers. With a weight of approx. 160g, the X-Hub is one of the lightest rear wheel hubs on the market.
The hub is designed for straight pull spokes. These can generate a little more rigidity. But the bigger advantage lies elsewhere. The weak point of a bent spoke is the head with its bend. When a spoke breaks, it's usually at this point. Especially spokes do not have this weak point.

Technical specifications:

intended use : Road
Material hub: Aluminum 7075-T6
Material freewheel body: Aluminum 7075-T6
axle type : 5x130 mm quick release
Number of holes: 24 holes
Brake disc mount: -
Freewheel compatibility: 12-speed SRAM XDR, 11-, 12-speed SRAM XD with spacer
Freewheel type: 4 pawls, 56 detents
bearing : 4x industrial bearings (1x 61903-2RS, 3x 61803-2RS)
Spoke type: straight pull
Max. permissible spoke tension: 1275 Nm (right side), 785 Nm (left side)
maximum system weight: kA

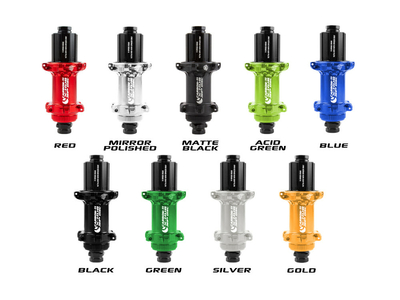

Colour: black, red, gold, blue, silver, green, acid green or matt black

Weight according to the manufacturer: 157g (24 holes), 159g (28 holes)

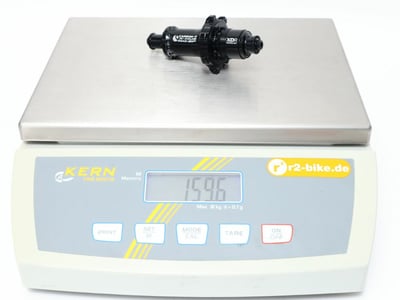

Weight weighed: 160g (28 holes)

Scope of delivery: 1x CARBON-TI rear hub X-Hub Road SP Rear XDR for quick release | Freehub SRAM XDR
