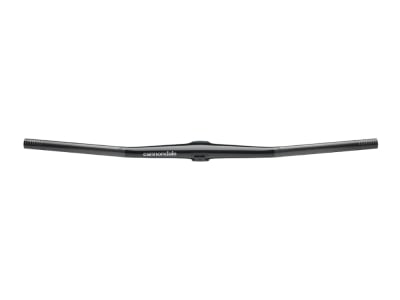

CANNONDALE Stem/Handlebar Unit SystemBar XC-One | 760 mm | ICR | Raw

%

Description
Variations

CANNONDALE stem/handlebar unit SystemBar XC-One | 760 mm | ICR | Raw

The future of fast.
The Cannondale SystemBar XC-One cockpit harmonizes looks and function. The one-piece construction offers low weight, stiffness and a clean appearance, which is further emphasized by the color scheme.
In the front of the 760 mm wide cockpit, there is an opening to accommodate up to 4 cables and lines, which are hidden inside the frame by spacers, headset covers and headset bearings. The Ahead cap is integrated into the design language and a matching stem cover elegantly conceals the two stem clamp bolts. Would you like to use a bike computer from Garmin or Wahoo? No problem, an additional Ahead cap with a computer holder is included in the scope of delivery and places the computer directly above the stem. The result is an ingenious design language and precise control on the trails.

ICR
This stands for internal cable routing.
This means that the cables can now be routed completely internally and hidden in the frame thanks to an elegant outlet. The trend towards complete integration is the focus of future bikes. The design language of the frames will be complex and organic at the same time.
Cannondale offers a specific spacer kit as a link to your frame, as well as a sealed headset cover which is compatible with an Acros IS52 headset bearing.

NOTE: The instructions for the product must be observed! Torques must be strictly adhered to. If the necessary specialist knowledge or tools for correct installation are missing, the installation must be carried out by a specialist workshop with the appropriate knowledge. Bar ends must not be fitted. No spacers may be positioned above the stem. This stem/handlebar unit may only be used with this matching spacer kit.

Technical data:

Area of use: Cross country, down country, marathon
E-bike ready: n.a.
Material: Carbon
Stem length: 60 mm | 75 mm
Stem angle: -6°
Clamp height: 38.5 mm
Minimum insertion depth steerer tube: 30 mm
Max. torque on steerer tube: 5 Nm
max. torque attachments/grips: n.a.
Handlebar width: 760 mm
Shortenable: yes, up to 680 mm
Rise: 0 mm
Backsweep: 8°
Rider weight: n.a.
Finish: glossy
Color: UD Carbon / black

Weight according to manufacturer: 265g
Weight self-weighed: 275g (60 mm) | 284g (75 mm)

Scope of delivery:

1x Cannondale stem/handlebar unit SystemBar XC-One | 760 mm | ICR | Raw
1x stem cover (glossy black)
1x Ahead cap (glossy black)
1x Ahead cap with integrated bike computer mount (black)
1x Garmin inlay
1x Wahoo inlay
Mounting material
Flyer with QR code (manual)

NOTE: The spacer kit and the headset cap must be purchased separately and are not part of the article!
