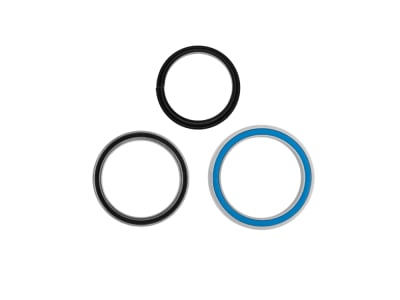

ACROS headset bearing set for Canyon AI-70 | IS44/31.6 | IS48/38.1 11/4" - 1 1/2"
From the tranquil town of Renningen, in the green Baden Württemberg, directly to your bike! Behind Acros is a group of passionate cyclists and engineers. Their motto: ride more, worry less.
This replacement bearing set for fully integrated headsets typically consists of two high-quality double-sealed stainless steel angular contact ball bearings, which are filled with optimized headset grease. The two sealing washers with double lip seal keep the grease safely inside the bearings and protect it from moisture and dirt. This is an IS version (Integrated System) with an outer diameter of 44 mm at the top and 48 mm at the bottom, which is used especially on Canyon frames with the AI-70 standard.
Technical data:
Material: Stainless steel, plastic
Type: IS (integrated)
Steerer tube: tapered 1 1/4" to 1 1/2"
S.H.I.S. upper part: IS44/31.6
S.H.I.S. lower part: IS48/38.1
Press-in dimension top Ø: 44 mm
Top offset: 5 mm
Press-in dimension bottom Ø: 48 mm
Bottom offset: 7 mm
Bearing seat top: n/a
Bearing seat bottom: n.a.
Outer diameter top: 44 mm
Outer diameter bottom: 48 mm
Overall height top: n/a
Overall height bottom: n/a
Bearing: Stainless steel - angular contact ball bearing, double sealed
Color: silver
Weight according to manufacturer: 26.5g
Weight when weighed: 42g
Scope of delivery:
1x ACROS headset bearing IS44/31.6 1 1/4"
1x ACROS headset bearing IS48/38.1 1 1/2"
1x centering ring with vulcanized seal
