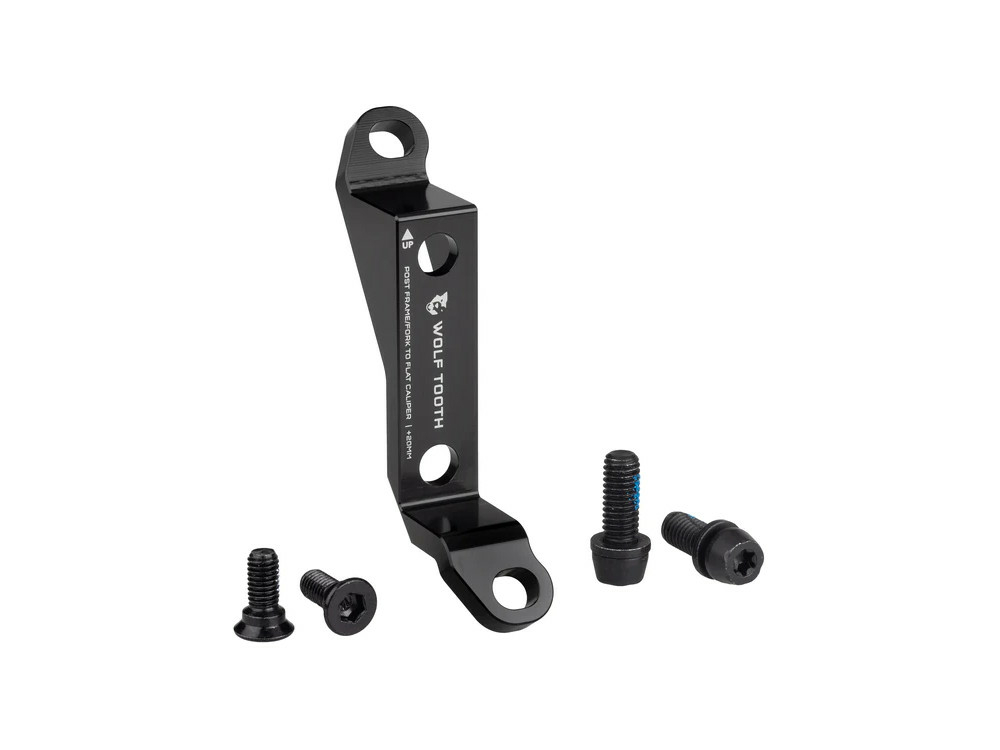

WOLFTOOTH Adapter Post Mount to Flat Mount | + 20mm
The Wolf Tooth Post to Flat Mount Brake Adapter allows flat mount brakes to be fitted to a frame or fork designed for post mount brakes. This is an important component for cyclists looking to ride a road groupset on a mountain bike frame. It is important to note that this is a +20mm adapter, which means that a 140mm PM native size will only work with a 160mm rotor, just as a 160mm PM native size will only work with a 180mm Brake disc works. The adapter is CNC-milled and made of aluminium.
Note: Requires a minimum of 13mm between the top of the brake hub and the frame/fork!
Technical specifications:
Material adapter: aluminum 6061-T6
Material screws: steel
possible brake disc size: 160, 180 and 200 mm
Mount mount : Post Mount
Rear triangle mount : Post Mount
mount brake: flat mount
Color: Black
Weight according to the manufacturer: 17g
Weight weighed: 17g
Scope of delivery:
1x adapter PM-FM +20 mm
2x screw M5x13 mm flat head for flat mount calipers
2x screw M6x13 mm Allen screws for Postmount
2x washer M6
Note: Before assembly, please coordinate the brake disc diameter with the specifications of the fork or frame manufacturer!
