SYNTACE Drop Bar Racelite Carbon matt

Item number:
Product weight:
209 g

289,00 €
Finanzieren ab 21 EUR / Monat
Mehr Informationen zum Ratenkauf
MSRP: 289,00 €

including 19% VAT. excl. Shipping costs / shipping time info

available from stock
Width (edge - edge)

There are variations of this item. Please select the variation you wish.

Product details


SYNTACE Handlebar Racelite Carbon matt

The Racelite2 now also with reduced drop and reach - ideal for more comfort and smaller riders! The reduced pre-bend of the handlebar allows a more compact seating position and facilitates the gripping of the shift and brake levers. The lower drop makes the lower link easier to reach.

carbon handlebar
Can be very light, but also very treacherous in terms of crash safety. In order to achieve Syntace's typically high level of safety, new fiber types and an elaborate arrangement of the fiber layers were combined with a load-oriented cross-section, thereby particularly reinforcing particularly sensitive areas.

The armor

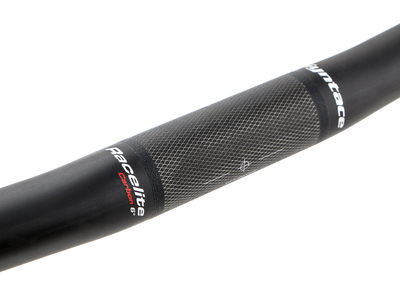

Is already visible to the naked eye: The central titanium mesh distributes the high clamping pressure and protects the precious carbon surface against handle-weakening wear and annoying twisting. It also enables safe mounting of aerobars such as the Syntace C3.

6 ° center cranking
With discreet but expresses effective oval shaping of the handle sections including double cable management. The result: Instead of pompous grip sausages that serve more of the short-lived fashion than the function, the new Syntace shape offers noticeably more comfortable driving than before, with superior practicality and real lightweight.

VR-3 tested
On the toughest and most realistic test machine in the world according to test standard RC 2002.3.

Double cable management
This makes it compatible with all switching and braking units.

Technical specifications:

intended use : Road bike, Cyclocross, Gravel
Material: Carbon
Handlebar clamp Ø: 31.8 mm
Handlebar width at the top of the drop: 400 mm (S) 420 mm (M) 440 mm (L) 460 mm (XL) outside / outside
Handlebar width below: 410 mm (S) 430 mm (M) 450 mm (L) 470 mm (XL), outside / outside
Diameter lower link: 24 mm
Pre-storage / Reach: 85 mm (S), 85 mm (M), 85 mm (L) 90 mm (XL)
Lowering / Drop: 128 mm (S, M, L) / 133 mm (XL)
Outside bend / flare: 2 °
Internal bending: not specified
Backsweep: 6 °
Max. System weight (driver, bike and luggage): no weight limit
Max. permissible torque: Stem 7 Nm
Optics / Finish: UD-Carbon, matt

Weight according to manufacturer:
Weight weighed: 209g (440 mm)

Scope of supply : 1x SYNTACE handlebar Racelite Carbon matt
