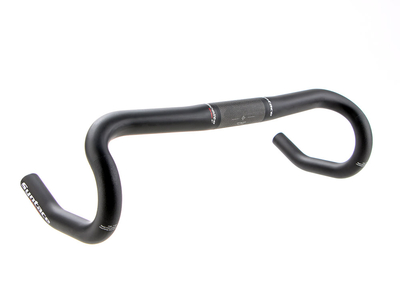

SYNTACE handlebars Racelite Carbon matt
The Racelite2 now also with reduced drop and reach - ideal for more comfort and smaller riders! The reduced pre-bend of the handlebars allows a more compact riding position and makes it easier to grip the shift and brake levers. The lower drop makes it easier to reach the lower handlebar.
Carbon handlebars
Can be very light, but also very tricky in terms of crash safety. In order to achieve the high level of safety typical of Syntace, new fiber types and an elaborate arrangement of the fiber layers were combined with a load-oriented cross-section and particularly neuralgic areas were reinforced.
The armor
It is clearly visible to the naked eye: the central titanium mesh distributes the high clamping pressure and protects the precious carbon surface from wear that weakens the handlebars and annoying twisting. It also enables the secure mounting of aero bars such as the Syntace C3.
6° center offset
With discreet but extremely effective oval shaping of the grip sections including double cable routing. The result: Instead of pompous grip sausages that are more about short-lived fashion than function, the new Syntace shape offers noticeably more comfortable riding than before, with superior practicality and real light weight.
VR-3 tested
On the toughest and most realistic test machine in the world according to test standard RC 2002.3.
Double cable routing
Compatible with all shifting and braking units.
Technical data:
Area of application: Road bike, cyclocross, gravel
Material: Carbon
Top link shape: round
Lower link shape: anatomical
Cable routing: external cable ducts
Handlebar clamp Ø: 31.8 mm
Handlebar width at top of drop: 400 mm (S) 420 mm (M) 440 mm (L) 460 mm (XL) outside/outside
Lower handlebar width: 410 mm (S) 430 mm (M) 450 mm (L) 470 mm (XL), outside/outside
Lower link diameter: 24 mm
Reach: 85 mm (S), 85 mm (M), 85 mm (L) 90 mm (XL)
Drop: 128 mm (S,M,L) / 133 mm (XL)
Flare: 2°
Internal bend: n.a.
Backsweep: 6°
max. system weight (rider, bike and luggage): no weight limit
max. permissible torque: stem 7 Nm
look/finish: UD carbon, matt
Weight according to manufacturer:
Weight self-weighed: 209g (440 mm)
Scope of delivery: 1x SYNTACE handlebar Racelite Carbon matt
