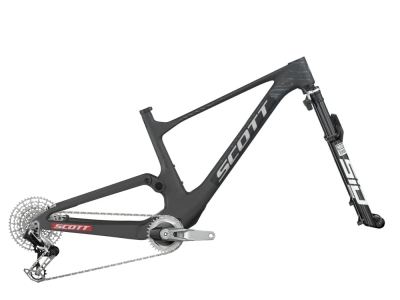

SRAM 1987 Groupset x SCOTT Frameset 29" Spark RC World Cup HMX | carbon black | 2026
From now on there are no more excuses. SRAM's exclusive 1984 Limited Edition meets the World Cup Spark RC from SCOTT.
SRAM Eagle Transmission 1987 Edition - Limited high-end groupset
The strictly limited SRAM 1987 Edition (only 1,987 units worldwide!) combines state-of-the-art T-Type technology with an exclusive all-silver finish. Each component carries an individual serial number and delivers maximum shifting precision, robustness and performance.
Highlights:
technical data:
Material cassette: aluminum, steel
Pod controller material: aluminum, plastic
Rear derailleur material: Aluminum
Crank material: Aluminum
Gear steps: 12
Crank length: 170 mm
Chainring: 32&34 teeth
Chainline: 55 mm (Wide)
Q-factor: 174 mm
Controller position: right & left
Abstufung: 10,12,14,16,18,21,24,28,32,38,44,52
Gear range: 520%
Freewheel compatibility: SRAM XD
Rear derailleur compatibility: SRAM Eagle Transmission 10-52 teeth
Color cassette and chain: silver
Color rear derailleur and controller: silver/black
Weight according to manufacturer: n.a.
Weight self-weighed: 1825g (170 mm crank arm length, 34 teeth)
Scope of delivery: SRAM Eagle Transmission 1987 Edition MTB groupset | 55 mm chainline 174 mm Q-factor | 170 mm | silver
1x SRAM 1987 Eagle Transmission rear derailleur
1x SRAM 1987 aluminum crank, 170 mm
1x power meter incl. CR2032 battery (mounted)
1x chainring 32 teeth
1x chainring 34 teeth (mounted)
1x SRAM disassembly tool for thread mount chainring
1x SRAM 1987 Eagle Transmission cassette
1x SRAM 1987 Eagle Transmission flattop chain
2x Pod Ultimate Controller incl. 2032 battery and Infinity Clamp in silver
2x battery
1x 4x charger incl. USB-C cable
SCOTT frameset 29" Spark RC World Cup HMX | carbon black | 2026 - race platform at World Cup level
The Spark RC World Cup HMX frame stands for uncompromising efficiency, maximum integration and state-of-the-art carbon technology. The integrated shock architecture ensures an extremely agile, stable and lightweight XC setup.
Technical data:
Area of application: Cross country, marathon
Material: HMX Carbon
Frame sizes: S, M, L, XL
Wheel size: 29"
Head tube: 1 1/8" - 1.5" tapered
Headset: semi-integrated (ZS56/28.6 - ZS56/40), adjustable steering angle
Front suspension travel: 120 mm
Rear suspension travel: 120 mm
Fork offset: 44 mm
Seat tube (inner diameter): 31.6 mm
Seat tube (outer diameter): 34.9 mm
Front derailleur mount: without, only 1x drivetrains
Bottom bracket type: PressFit BB92 (92 x Ø 41 mm)
Disc brake mount: Postmount 6" (Scott recommends Shimano or SRAM brakes for space reasons)
Maximum brake rotor size: 160 mm (180 mm also possible with optional adapter)
maximum tire width: 2.4"
Rear axle system: 12x148 mm Boost
Shifting system: derailleur, 1-speed only, mechanical or electronic, UDH derailleur hanger
max. chainring size: 38 teeth
Chainline: 55 mm
max. rider weight: 130 kg
Cable routing: internal
Color: matt black with glossy black fork
Weight according to manufacturer: 1995g (frame and rear shock, size M)
Scope of delivery:
- Scott frame Spark RC World Cup HMX | carbon black | 2026
- UDH derailleur hanger
- RockShox SID Ultimate Flight Attendant 3-Mode | 120 mm
- RockShox SIDLuxe Ultimate Flight Attendant 3-Mode T165x45mm | 120 mm
- Syncros Acros Pro +/- 0.6° Adjustable headset
- Seat clamp
- Syncros HR axle
Note: Scott recommends the use of Shimano or SRAM disc brakes. Models from other manufacturers (e.g. Magura or Hope) may not be able to be fitted to the rear triangle due to space restrictions.
MPN:
4257103020006 & 00.7918.390.000
SCOTT Frame Set 29" Spark RC World Cup HMX | carbon black | 2026available from stock
SRAM Eagle Transmission 1987 Edition MTB Groupset | 55 mm Chainline 174 mm Q-Factor | 170 mm | silveravailable from stock
