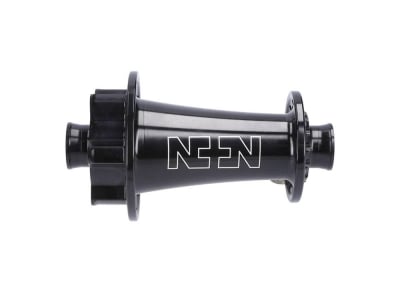

NONPLUS COMPONENTS front hub Terraris J Gravel | 6-hole black 15x100 mm
Three decades of experience in the development and production of hubs have left their mark, albeit a "very light" one.
Over the years, the head of development at NONPLUS COMPONENTS, Christian Jenny, was able to accumulate an immense amount of specialist and practical knowledge, which led to the production of the company's first prototypes in 2016 after finding an investor. A short time later, in 2018, NON+ was registered as a trademark. Since then, the wheels have not stood still at one of the most innovative think tanks for bike components in Germany. New concepts are constantly being developed and patents applied for in order to set new standards in the future.
The front wheel hub from NONPLUS forms the heart of your new, ultra-light wheelset. Despite its weight of just under 83g, the hub has no restrictions in terms of its range of use. The black anodized finish not only looks good, it also protects the oversized hub body from corrosion. The whole thing revolves around two high-quality 6803 2RS deep groove ball bearings, which are placed on a 17 mm axle. The micro-gap end caps, which also form a seal against the elements, provide the finishing touch.
The NONPLUS for your gravel adventures.
The Terraris J front hub forms the heart of your new, ultra-light wheelset. Despite its low weight, the hub has no limitations in terms of its range of use. The black anodized finish not only looks good, it also protects the oversized hub body from corrosion. The whole thing revolves around two high-quality 6803 2RS deep groove ball bearings, which are placed on a 17 mm axle. The micro-gap end caps, which also form a seal against the elements, provide the finishing touch.
GEN2
Thanks to high-precision manufacturing and perfect quality control, the second generation hubs do not require the previously used bearing play adjuster. This means you always have a perfectly adjusted hub with smooth, easy running.
Precision and quality
The elimination of disruptive factors such as flex, vacuum effect, spoke tear-out and tolerances, through the highest precision in material selection, manufacturing process and quality assurance, enable a warranty period of 4 years!
Simplification
The filigree transition between the brake disk mount and the flange saves weight and at the same time generates more strength.
Non Vacuum Effect
A unique venting system prevents the build-up of negative pressure due to temperature fluctuations in the hub. As a result, no water is sucked through the ball bearings, which ensures a significantly longer service life and noticeably smoother running of the bearings.
Special sealing
Micro-gap end caps improve the sealing of the individual hub components.
Note: The hub is a high-end product with a focus on minimum weight. The selected bearings are a small compromise for particularly smooth running and maximum speed. The special seal reduces friction, but requires a little more maintenance.
Technical data:
Area of application: Gravel, road bike, CX, MTB
Material: anodized aluminium
Axle standard: 15x100 mm thru axle
Number of holes: 24, 28 or 32 holes
Brake rotor mount: 6-hole (IS2000)
Bearing: Industrial deep groove ball bearing (2x 6803 2RS)
Spoke type: Standard spokes (J-bend)
max. permissible spoke tension: 1200N
maximum system weight: no restriction
Color: black with lasered logos
Weight according to manufacturer: 81g
Weight when weighed: 82.7g
Scope of delivery: 1x NONPLUS COMPONENTS front hub Terraris J Gravel | 6-hole black 15x100 mm
