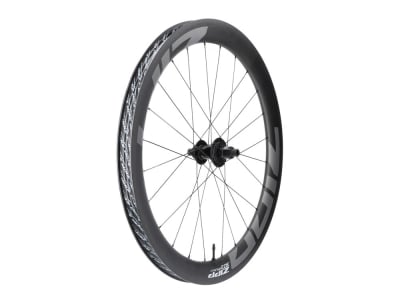

ZIPP Rear Wheel 28" 303 XPLR SW Carbon Clincher | Tubeless | Center Lock | 12x142 mm Thru Axle | SRAM XDR Freehub Body

Description

ZIPP rear wheel 28" 303 XPLR SW Carbon Clincher | Tubeless | Center Lock | 12x142 mm thru axle | SRAM XDR freehub body

With the 303 XPLR wheels, the Americans from Zipp are once again breaking new ground. In recent years, gravel races have become significantly faster thanks to better material and increasing professionalization. With average speeds of 35 km/h and more not uncommon, aerodynamics are playing an increasingly important role. Zipp has taken this development into account and, with the 303 XPLR, has built its fastest wheels specifically for gravel tires.
Typical tire widths for gravel races are usually between 38 and 50 millimeters, which leads to an aerodynamically unfavorable "light bulb shape" in the profile in relation to the significantly smaller outer width of conventional gravel wheels. The Zipp 303 XPLR wheels therefore have an outer width of 40 millimetres and a profile height of 54 millimetres. With this rim profile, the most aerodynamically efficient wing shape with an almost seamless transition between tire and rim can be achieved with the right rim-tire combination, just like with modern road bike wheelsets.
As a side effect, the inner width has also been increased to a gigantic 32 millimetres, which allows you to ride a suitable tubeless tire with significantly less air pressure without the risk of the tire buckling uncontrollably in fast bends. In practice, this means more grip and significantly reduced vibration losses, which gives you more speed on rough gravel tracks with the same performance and at the same time makes you less tired on long distances. The optimum function is achieved with the Goodyear XPLR Slick and XPLR Inter tires specially developed for the Zipp XPLR wheels.
With the 77% wider rim edges of the hookless rims compared to the previous models, the 303 XPLR have become significantly more robust in the event of punctures and the risk of tire damage is reduced due to the larger contact area on impact.
Despite their oversized dimensions, Zipp was able to keep the weight of the 303 XPLR SW wheelset surprisingly low at 1454 grams (weighed including tubeless valves), which makes the wheels an extremely efficient choice even for mountainous courses.

Total System Efficiency (TSE)
The 303 XPLR wheels were developed under the TSE approach. The development goal was to find the best possible wheel design to overcome the speed barriers that exist under realistic riding conditions. In addition to wind resistance, gravity and rolling resistance, these also include vibration losses in poor road conditions.

ABLC Dimples
Similar to a golf ball profile, the ABLC dimples help you to reduce air resistance and crosswind susceptibility.

Zipp ZR1 hubs
The Zipp ZR1 hubs were developed in Germany over the course of two years. Their most striking feature is the extremely fine-toothed freehub body design of the rear hub with 66 engagement points per wheel revolution, which allows the ZR1 to respond to acceleration without delay. The fine toothing is realized via a system of 6 pawls, 3 of which engage in an offset manner. The design of the seals is based on the high-end Cognition hubs and provides more protection and durability with a larger dust cap behind the freehub body and better seals.

Zipp Lifetime Warranty
Zipp grants you a lifetime warranty on your Zipp wheel when used properly. The warranty also covers racing use and damage caused by riding errors as long as the wheel has been used for its intended purpose. The warranty is only valid for the original purchaser and proof of purchase is mandatory!

NOTE: The 303 XPLR wheels are only compatible with tires approved by Zipp. You can find a tire compatibility overview here.

Technical data:

Area of application: Gravel
Wheel size: 28" (ETRTO: 32-622)
Rim type: Hookless (only suitable for tubeless tires)
Brake type: only for disc brakes
Brake rotor mount: Center Lock
Material: carbon, aluminum
Inner width: 32 mm
Outer width: 40 mm
Rim height: 54 mm
Number of holes: 24 holes
Axle standard: 12x142 mm thru axle (QR12)
Bearings: 4x industrial bearings
Freehub compatibility: 12-/13-speed SRAM XDR
Freehub type: 6 pawls, 66 engagement points per wheel rotation
Spokes: 24x Sapim CX-Ray J-Bend (black)
tubeless compatible: yes
recommended tire width: 40-64 mm
maximum tire pressure (tire width): 3.45 bar (40 - 44 mm); 3 bar (45 - 54 mm); 2.5 bar (55 - 64 mm)
maximum system weight: 130 kg (rider, bike, clothing and possibly luggage)
Finish: UD Carbon matt
Color: black

Weight according to manufacturer: 1496g (wheelset)
Weight self-weighed: 789g (including tubeless tape and tubeless valve)

Scope of delivery:

1x rear wheel Zipp 303 XPLR SW Carbon Clincher | Tubeless | Center Lock | 12x142 mm thru axle | SRAM XDR
1x tubeless rim tape
1x tubeless valve

GTIN:

710845901454

MPN:

00.1918.738.001

Modell ID:

WH-303-XPSW-A1
