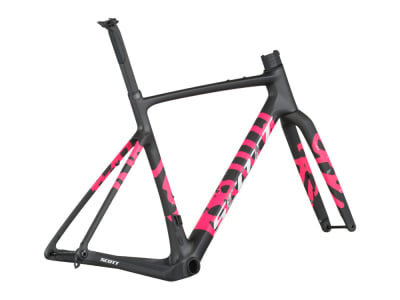

SCOTT frameset Gravel Addict RC HMX | 2026
Are you looking for the best material for your adventures? With this frame, you've already found a good basis for being fast, comfortable and enduring on unpaved trails.
The Gravel Addict HMX frame comes in an eye-catching yet elegant design for the current model year. It boasts a number of features that make it an absolute gravel bullet. There are the HMX carbon fibers, a contemporary UDH derailleur hanger, the aerodynamic shape and various mounting eyelets for accessories.
The HMX carbon fibers are the main contributor to the low weight and yet high stiffness. These are produced exclusively for Scott and come very close to the ideal balance between weight, stiffness and comfort. In addition, fibers impregnated with nano-resin are used in particularly stressed and critical areas. This ensures undisturbed propulsion and protects your frame from serious damage in the event of a fall.
You also have the option of fitting a top tube bag, mudguards and several bottle cages. This means you are optimally equipped for longer tours.
The aerodynamics have also been improved - after all, you don't just ride off-road. The streamlined shape starts with the fork and continues through to the aero seat post. Nothing should be unnecessarily exposed to the wind and impair your propulsion. The brakes are mounted close to the frame to prevent unnecessary turbulence. The spacers on the headset allow the air to glide past undisturbed and the seatpost clamp is integrated almost invisibly. Everything looks well thought out.
The clean look is achieved by the ICCR cable routing, in which all cables and lines run through the frame. Every conceivable constellation has been considered. You can install both mechanical and electronic groupsets. The cables are neatly routed through inserts in the frame, where they are well protected from dirt and rain.
The set already includes a Scott Addict Gravel fork, a Syncros SP-R101-CF carbon seatpost and an integrated headset. Everything has been colour-matched to the frame and results in a uniform appearance that is guaranteed to make you envious.
Technical data
Area of use: Gravel
Frame sizes: XS, S, M, L, XL
Frame material: HMX Carbon
Fork material: HMX Carbon
Wheel size: 28"
Head tube: 1 1/4"-1 1/2", integrated, IS52 /31.8 - IS 52/40
Seat tube (inner diameter): oval, special seat post included in the scope of delivery
Seat tube (outer diameter): oval
Bottom bracket standard: Pressfit BB86 (86.5 x 41 mm)
Axle standard fork: 12x100 mm thru axle
Axle standard frame: 12x142 mm thru axle
Front disc brake mount: Flat mount
Rear disc brake mount: Flat mount
Max. brake disk size: front 180 mm, rear 160 mm
Gear type: mechanical or Di2, UDH compatible
Front derailleur mount: Braze-on
Cable routing: internal
max. system weight: 120 kg (rider incl. clothing and any luggage)
Maximum tire width: 45 mm
Features: fastening screws for top tube bag
Color: black matt with pink decals
Weight frame according to manufacturer: 930g
Weight frame itself weighed: -
Weight fork according to manufacturer: 395g (with uncut steerer tube)
Total weight even weighed: -
Scope of delivery:
SCOTT frame Gravel Addict RC HMX | 2026
Scott Addict Gravel full carbon fork
Acros AiF-1135 headset
Expander and Ahead cap
Syncros SP-R101-CF carbon seatpost (frame sizes S and M: 0 mm offset - frame sizes L and XL: 15 mm offset)
Syncros thru axles
Standard derailleur hanger
