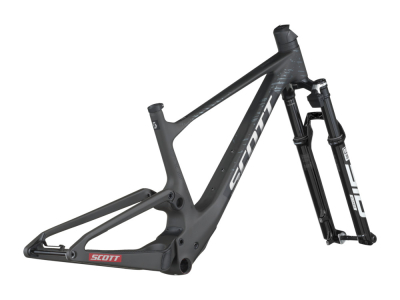

SCOTT frameset 29" Spark RC World Cup HMX | carbon black | 2026
From now on there are no more excuses. With this frame you have the top material par excellence. It has what it takes to be a winner, don't you? An absolute racing machine that was developed for nothing other than turning muscle power into propulsion.
Scott continues to go its own way this year. Integration is the motto. And this is noticeable at first glance. Is the shock missing? Of course not. It sits well protected just above the bottom bracket. What are the advantages of this design? For one thing, the shock is very well protected from dirt and other external influences. In addition, weight is saved because the bottom bracket area is already stiff from the outset to maximize stability and therefore less additional material is required for the mount. And last but not least, this frame shape allows two bottle cages to be fitted. This means you always have enough liquid to hand, even in marathons or on long tours.
The suspension travel remains unchanged. This is still 120 mm at the front and rear. For Scott, this is the standard with race range. This gives you sufficient comfort and safety reserves off-road.
The suspension has been given a truly sophisticated update. From this season, a RockShox SID Ultimate Flight Attendant suspension fork and the RockShox SIDLuxe Ultimate Flight Attendant shock smooth out the ground and you experience a completely new level of performance. The great advantage of this system is the automatic adjustment to your riding style and the ground. You always have the optimum suspension travel and ideal damping behavior at your disposal without having to worry about it while riding. Of course, you can also make manual settings or choose between the 3 modes open, pedal and lock.
To use these functions, however, a SRAM Powermeter crankset or the SRAM Flight Attendant Pedal Sensor is required, which determines the relevant riding data and transmits it to the fork and damper.
Another interesting feature is the adjustable headset from Acros. In addition to the well-known high functionality, the steering angle can be changed by +/- 0.6°. This allows you to adapt the entire frame geometry to your individual preferences or area of use.
The 55 mm chainline has been retained. It offers more installation space for a stiffer chainstay and also allows the use of very wide 2.4" tires. This increases traction and puncture protection at the same time.
The HMX carbon fibers are the main contributor to the low frame weight and high rigidity. These are produced exclusively for Scott and come very close to the ideal balance between weight, stiffness and comfort. In addition, fibers impregnated with nano-resin are used in particularly stressed and critical areas. This ensures undisturbed propulsion and protects your frame from serious damage in the event of a fall.
Dispensing with the Horst link joint on the rear triangle makes the Spark even easier and reduces maintenance costs. Its function is taken over by the flexibly designed seat stays.
The brake mount on the rear triangle also saves weight. In the past, the opinion was that the combination of brake, seat stay and chainstay had to be radically stiff. Scott has reconsidered this and now only connects the brake to the chainstay and directly to the rear wheel axle via a special adapter. This means that the seat stay does not have to absorb any forces and can be lighter.
A clean and graceful look is achieved by the ICCR cable routing, in which all cables and lines run through the frame. Every conceivable constellation has been considered. The cables are neatly routed through inserts in the frame, where they are well protected from dirt and rain.
ATTENTION
Scott recommends the use of Shimano or SRAM disc brakes. Models from other manufacturers (e.g. Magura or Hope) may not be able to be mounted on the rear triangle due to space restrictions.
Technical data:
Area of application: Cross Country, Marathon
Material: HMX Carbon
Frame sizes: S, M, L, XL
Wheel size: 29"
Head tube: 1 1/8" - 1.5" tapered
Headset: semi-integrated (ZS56/28.6 - ZS56/40), adjustable steering angle
Front suspension travel: 120 mm
Rear suspension travel: 120 mm
Fork offset: 44 mm
Seat tube (inner diameter): 31.6 mm
Seat tube (outer diameter): 34.9 mm
Front derailleur mount: without, only 1x drivetrains
Bottom bracket type: PressFit BB92 (92 x Ø 41 mm)
Disc brake mount: Postmount 6" (Scott recommends Shimano or SRAM brakes for space reasons)
Maximum brake rotor size: 160 mm (180 mm also possible with optional adapter)
maximum tire width: 2.4"
Rear axle system: 12x148 mm Boost
Shifting system: derailleur, 1-speed only, mechanical or electronic, UDH derailleur hanger
max. chainring size: 38 teeth
Chainline: 55 mm
max. rider weight: 130 kg
Cable routing: internal
Color: matt black with glossy black fork
Weight according to manufacturer: 1995g (frame and rear shock, size M)
Weight self-weighed: -
Scope of delivery:
- Scott frame Spark RC World Cup HMX | carbon black | 2026
- UDH derailleur hanger
- RockShox SID Ultimate Flight Attendant 3-Mode | 120 mm
- RockShox SIDLuxe Ultimate Flight Attendant 3-Mode T165x45mm | 120 mm
- Syncros Acros Pro +/- 0.6° Adjustable headset
- Seat clamp
- Syncros HR axle
