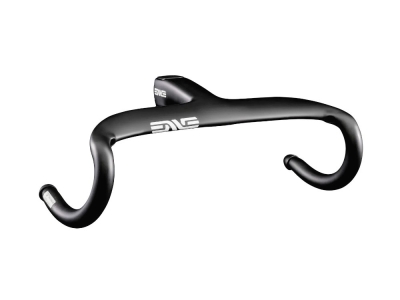

ENVE Stem/Handlebar Unit SES Aero Pro One-Piece IN-Route Carbon | 370 mm / 110 mm

Description

ENVE Stem/Handlebar Unit SES Aero Pro One-Piece IN-Route Carbon | 370 mm / 110 mm

ENVE products have experienced a rapid rise in the world of cycling. They have even been tested in major tours such as the Tour de France or the Vuelta in Spain. The carbon specialists from the USA develop only the uncompromisingly best components for elite riders and ambitious enthusiasts.

Developed with the fastest cyclists in the world, the SES Aero Pro One-Piece handlebars combine aerodynamic features with design elements based on feedback from professional athletes. The one-piece aero cockpit was directly inspired by Tadej Pogačar and the UAE Team Emirates and stands for maximum aerodynamics, integration and speed.
Although it is a handlebar and stem unit, the cockpit actually consists of two parts that are joined together in the production process. This allows ENVE to combine any handlebar width with any stem length, resulting in 18 different combinations. All stem/handlebar units are custom made in-house in Ogden, Utah and come with an ENVE factory warranty of 5 years and lifetime ENVE Incidental Damage Protection.
The top of the handlebar is flat and aero. Although the drops are positioned slightly outwards, they remain pointing straight backwards. This increases safety in road races when you are in close contact with the competition.
ENVE relies on its own IN-Route system for the fully integrated cable routing. This routes all shift and brake lines through the stem, then through the headset and aligns them in front of the steerer tube. From there, the front brake goes into a connection at the front of the steerer tube to be routed through the left fork leg to the brake. The rest flows around the steerer tube into the down tube. The result is not only a very clean and tidy look, but also offers aerodynamic advantages without compromising rider comfort.
The whole thing is rounded off by a bracket from K-EDGE, which has been optimized for the aero cockpit and hugs the handlebars perfectly in terms of shape and aerodynamics.

ENVE IN-Route
Hidden cables and lines are the be-all and end-all when it comes to the modern road bike and the aerodynamic advantages in competition. As a complete system, ENVE IN-Route offers a variety of stem, handlebar, headset and fork combinations to provide the right fit for every frame material and rider size.It routes all shift and brake lines through the stem, then through the headset and aligns them in front of the steerer tube. From there, the front brake enters a port on the front of the steerer tube to be routed through the left fork leg to the brake. The rest flows around the steerer tube into the down tube. These features make IN-Route a complete all-in-one cable integration solution.

The stem/handlebar unit from ENVE is compatible with your bike if the frame and fork use a similar routing setup for the integrated cable routing. Alternatively, the cables can also be routed out towards the frame via a bypass spacer.

Technical data:

Area of application: Road, Gravel
Handlebar material: Carbon
Bolt material: Titanium
Bracket material: Aluminum
Top link shape: aero
Lower link shape: compact
Cable routing: fully integrated routing through handlebar-stem unit and head tube or fully integrated routing through handlebar-stem unit and out towards the frame
Stem angle: -7°
Stem length: 110 mm
Handlebar width top link (center - center): 370 mm
Handlebar width lower link (outer - outer): 400 mm
Reach: 79 mm
Drop: 129 mm
Flare: 30 mm
Backsweep: 0°
max. system weight: n/a
max. tightening torque 5.5 Nm
Finish: UD carbon, matt
Color: black

Weight according to manufacturer: from 345g
Weight self-weighed: 374g

Scope of delivery:

1x ENVE stem/handlebar unit SES Aero Pro One-Piece IN-Route Carbon | 370 mm / 110 mm
1x K-Edge mount for Garmin & Wahoo incl. screws
2x mounting screws
2x handlebar end plugs
1x Ahead cap incl. screw
2x 5 mm spacers
3x 10 mm spacer
1x 10 mm external bypass spacer

Note: We recommend registering the product within 60 days of purchase to be eligible for warranty and accident protection program. Register here.
