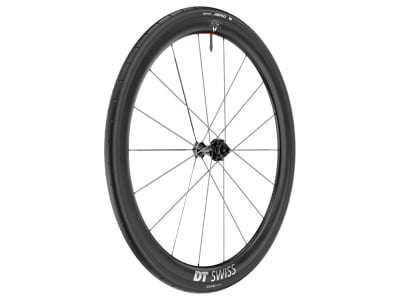

DT SWISS front wheel 28" ARC 1100 Spline CS WTS Center Lock 38 mm | 12x100 mm thru axle
"The lightest way up. - The lightest way up." According to this motto, DT Swiss are launching their first wheels with carbon spokes, which offer not only low weight but also very good aerodynamics.Especially in combination with the Continental 111 TR Aero tires, the competition is shown the limits and the word air resistance almost loses its meaning. With them you can really pick up speed uphill and easily leave the peloton behind you.
The idea, development and test phase was a successful experiment between DT Swiss, Continental and the aerodynamics experts at Swiss Side. In addition to the goal of being the best and fastest, the close interaction of the various components was taken to a new level and creative solutions were sought. Thanks to their carefully considered selection and the typically high manufacturing quality, you are guaranteed the best functionality and a long service life.
ARC 38 mm AERO+ carbon rim
Carbon has also become the first choice of rim material at DT Swiss, with the Swiss company implementing a new concept in the production process that makes additional coating unnecessary. This saves weight and achieves an exceptional surface finish.The 38 mm high sidewall, together with the V-shape cross-section, ensures very good aerodynamic values without putting unnecessary strain on the scales and shows its advantages above all in mountainous terrain, but also allows you to make good speed on the flat.Externally, the rim shape was developed according to the DT Swiss AERO+ concept and shows its advantages especially in crosswinds. Air currents hitting at an angle create a sailing effect, which gives you additional propulsion and allows you to save a lot of energy. The internal nipples also increase the streamlining effect and give the wheel a clean look.
The dreaded negative influences on the steering torque have also been minimized. These have the effect that strong and asymmetrical crosswinds can lead to abrupt changes in flow and sometimes trigger uncontrollable steering movements, which makes precise and smooth riding much more difficult. The AERO+ profile ensures an even distribution of lateral force, allowing you to ride at a relaxed pace.
Thanks to the contemporary inner width of 20 mm, even large-volume tires are perfectly supported, which prevents them from kinking in fast bends and ensures greater riding stability and better damping capacity. In addition, the rim is of course designed for tubeless systems, allowing you to ride with a lower air pressure, further improving comfort and grip and reducing susceptibility to punctures.
CONTINENTAL tires Aero 111 TR 700 x 26C BlackChili VectranBreaker
The perfect storm! With the Aero 111 tubeless tires, Continental, in collaboration with the aerodynamics experts from Swiss Side, has succeeded in optimally guiding the air along the rims. This is made possible by 48 so-called vortex generators, small precision-formed air chambers on the tread of the tire. These generate controlled turbulence, which ensures that the airflow sticks to the rim for longer and only stalls at large lateral flow angles. In practice, this not only results in a more aerodynamically efficient wheel and tire system, but also improves crosswind stability and directional stability when steering. The Aero 111 was developed and aerodynamically optimized in combination with DT-Swiss ARC and ERC aero rims. However, the tires can also demonstrate their advantages on rims from other manufacturers. Because the air on the rear wheel is already too turbulent, the Aero 111 is particularly recommended for use on the front wheel.
The carcass construction and rubber compound were largely adopted from Continental's high-end 5000 S TR racing tire. Thanks to only 2 fabric layers under the tread, the rolling resistance is extremely low and the tire can adapt perfectly to the surface. Thanks to the Vectran Breaker puncture protection layer and the grippy Black Chili tread, the reduced number of layers does not have a negative effect on puncture protection.
DT Swiss 180 Spline hub
No compromises are made in the center either, where the elegant DT Swiss 180 spline hub spins. Despite its very low weight, it guarantees direct and precise steering. The patented two-in-one spoke mounts give the hub a slim shape and support the wheel's good aerodynamics. The perfectly sealed SINC ceramic hybrid ball bearings are legendary. In addition to incredibly smooth running, they guarantee a long service life and low maintenance.
Vonoa Aero carbon spokes
The highlight of this front wheel is definitely the spokes. They are not made of steel as usual, but of carbon fibers and are approx. 40 % lighter per piece. Together with the lightweight rims, they ensure incredible acceleration values and the best uphill performance. In addition, their aerodynamic shape offers little resistance to the wind, allowing you to save valuable energy. They are also extremely tear-resistant, which means that the wheel can be built very stably and durably even with just 18 spokes.
Technical data wheel:
Area of application: Road bike
Wheel size: 28" (ETRTO: 20-622)
Rim type: clincher for folding and clincher tires
Brake type: for disc brakes only
Brake rotor mount: Center Lock
Rim material: UD carbon
Inner width: 20 mm
Outer width: 26 mm
Rim height: 38 mm
Number of holes: 18
Offset: no
Axle standard: 12x100 mm thru axle
Bearing: 2x ceramic hybrid industrial deep groove ball bearings
Spokes: VONOA Aero Carbon T-Head
Lacing pattern: left: radial | right: double crossed
tubeless compatible: yes
recommended tire width: 25 - 64 mm
maximum air pressure: with inner tube: 8.5 bar (28 mm tires) | tubeless: 7.0 bar (25 mm tires)
maximum system weight: 110 kg (rider, bike, clothing and possibly luggage)
Rim color: black matt with silver decals
color hub: black
technical data tires:
Tire type: folding tire
Application: Front tire for time trial, triathlon, road bike
Size (inch): 28 | 700 x 26C
Size (ETRTO): 26 - 622
Construction: Handmade in Germany, VectranBreaker, Active Comfort Technology, Tubeless
Rubber compound: BlackChili Compound
Carcass: 220 TPI in 2 plies (tread); 330 TPI in 3 plies (sidewalls)
Tubeless capable: yes, tubeless ready (with the use of sealant)
E-bike compatibility: -
Profile: Slick with 48 Vortex generators to improve aerodynamic efficiency
maximum air pressure hook rim: 7 bar (101 PSI)
maximum air pressure hookless rims: 5 bar (72 PSI)
recommended inner rim width: maximum 25 mm
Maximum load (per tire): -
Color: black
Weight according to manufacturer: 820g
Weight self-weighed: -
Scope of delivery:
1x DT SWISS front wheel 28" ARC 1100 Spline CS WTS Center Lock 38 mm | 12x100 mm thru axle
1x CONTINENTAL tire Aero 111 TR 28" | 700 x 29C BlackChili VectranBreaker (mounted)
1x CONTINENTAL TPU Tube 28" | 622 x 25 - 35 (mounted)
1x tubeless valve + rim tape
1x wheel bag
