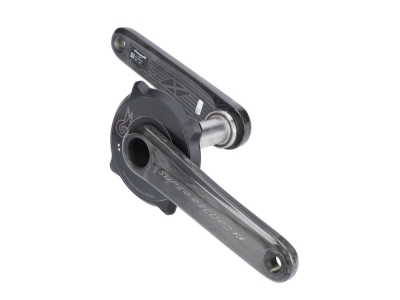

CAMPAGNOLO Crankset Powermeter 1-speed Super Record 13 X | 170 mm

Description

CAMPAGNOLO Crank Powermeter 1-speed GRAVEL Super Record 13 X

In 1973 Campagnolo introduced the first Super Record groupset - a consistent further development of the Record groupset that set new standards in terms of performance, lightweight construction and exclusivity. More than 50 years later, Campagnolo is continuing this tradition with the Super Record 13 platform and opening up new terrain in the process: as the first electronic Campagnolo groupset for gravel routes at maximum speed, it combines robustness, precision and iconic design into a system that proves its performance not only on asphalt. Campagnolo Super Record 13 X is made for fast adventures on challenging trails and at the same time a further step in redefining the brand identity - developed with the aim of setting a benchmark in the high-end segment even off perfect roads.

A technical masterpiece with an unmistakable design language: the Super Record 13 X crank attracts everyone's attention. This is ensured by the successful combination of matt aluminum aero chainring and carbon crankarms with their iconic, shiny finish. The deliberately visible carbon structure underlines the majestic elegance of the Italian set. Six chainring sizes from 38 to 48 teeth, combined with two cassette options, provide you with exactly the gear range you need for your personal gravel mission. Campagnolo remains true to its Ultra-Torque technology in the crankshaft system: two titanium half-shafts, firmly connected to the crankarms, mesh via Hirth splines and are securely fixed in place by a central oversize bolt. Adapted to the geometry of modern gravel frames, the ultra-torque crankshaft has been lengthened and optimized to a chainline of 47.5 mm and a Q-factor of 152 mm. Smooth running is ensured by ceramic bearings pressed onto the shaft, which together with the QCK-Tech bearing shells provide excellent protection against water and dirt. The wide range of QCK-Tech cups and bottom brackets ensures compatibility with all current bottom bracket standards.

Power meter from SRM
In modern training control, precise power measurement is crucial, especially for ambitious cyclists who want to improve their performance in a targeted manner. A power meter on the crank offers the most accurate and direct measurement of pedaling power, as it measures where the power is actually generated: directly at the interface between the rider and the drive. Compared to measuring systems on the hub or the pedals, a crank power meter provides a more harmonious and distortion-free overall picture of the real power. The SRM power meter with HPPM technology (High Precision Power Measurement) sets new standards in terms of accuracy and response speed. Its outstanding strength lies in continuous data acquisition at intervals of 5 milliseconds, which allows even the smallest power fluctuations to be detected and evaluated in real time. 16 sensors simultaneously measure the angular speed of the integrated gyroscope and the torque acting on the crank. This high-frequency measurement data is used to calculate the power output with maximum precision.

Like all components of the electronic shifting group, the crank units are manufactured entirely in Italy - an expression of the highest precision, perfect craftsmanship and uncompromising reliability.

Technical data:

Area of application: Gravel
Crank arm material: Carbon
Crankshaft material: Titanium
Crankshaft diameter: 25 mm (Campagnolo UltraTorque)
Crank length: 165 mm, 170 mm, 172.5 mm, 175 mm
Bolt circle diameter: 104 mm
Spider: 4-arm
Chainline: 47.5 mm
Q-factor: 152 mm
Compatibility groupset: Campagnolo 1x13 GRAVEL Super Record 13 X
Bottom bracket compatibility: Campagnolo QCK-Tech
max. rider weight: n/a
Finish: glossy
Color: black

Weight according to manufacturer: n/a
Weight self-weighed: 586g (165 mm)

Scope of delivery: 1x Campagnolo crank Powermeter 1-speed GRAVEL Super Record 13 X
